Add Directory

The Add Directory feature is used to create new directories in the application system, facilitating centralized management of user identity information.

Steps

Step 1: Log in to the Application

• Log in to the application using your account.

Step 2: Navigate to LDAP Settings

• Click on "AngusGM".

• Select "System", then click on "LDAP".

• In the top-right corner of the list, click "Add LDAP Service".



Step 3: Edit LDAP Directory Information

Configure the following information step by step and save:

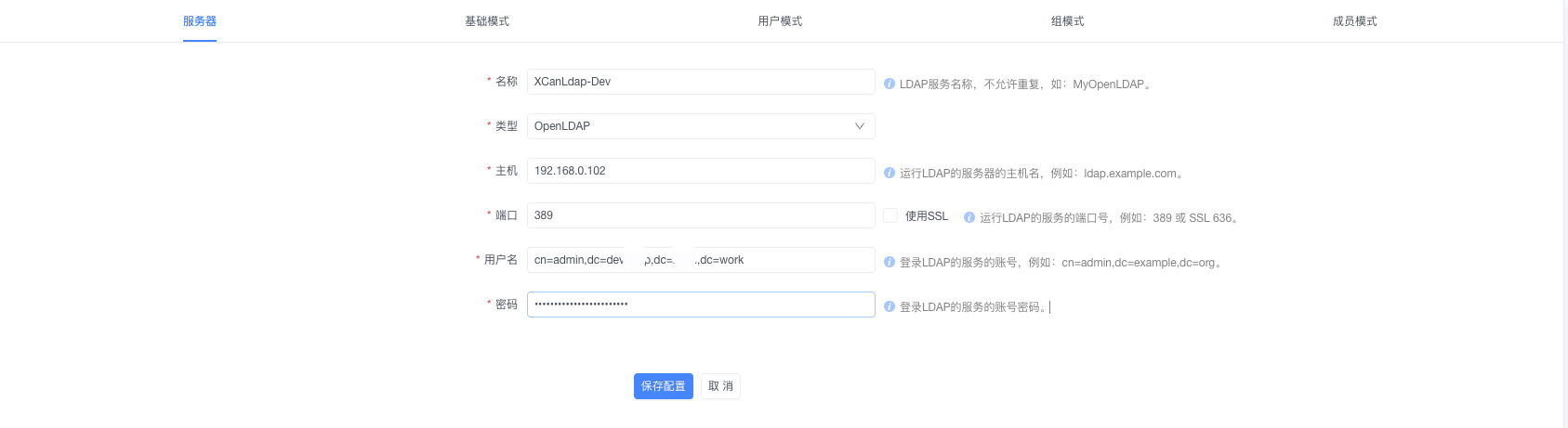

1. Configure Server

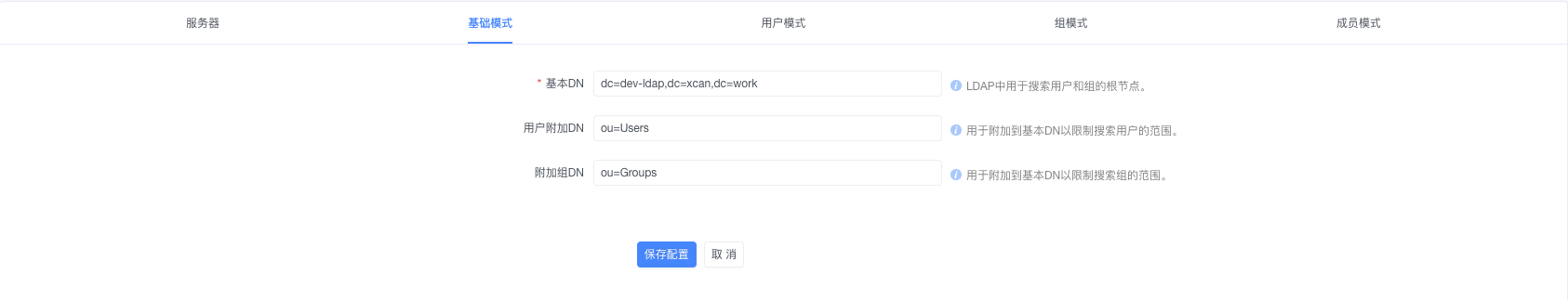

2. Configure Base Schema

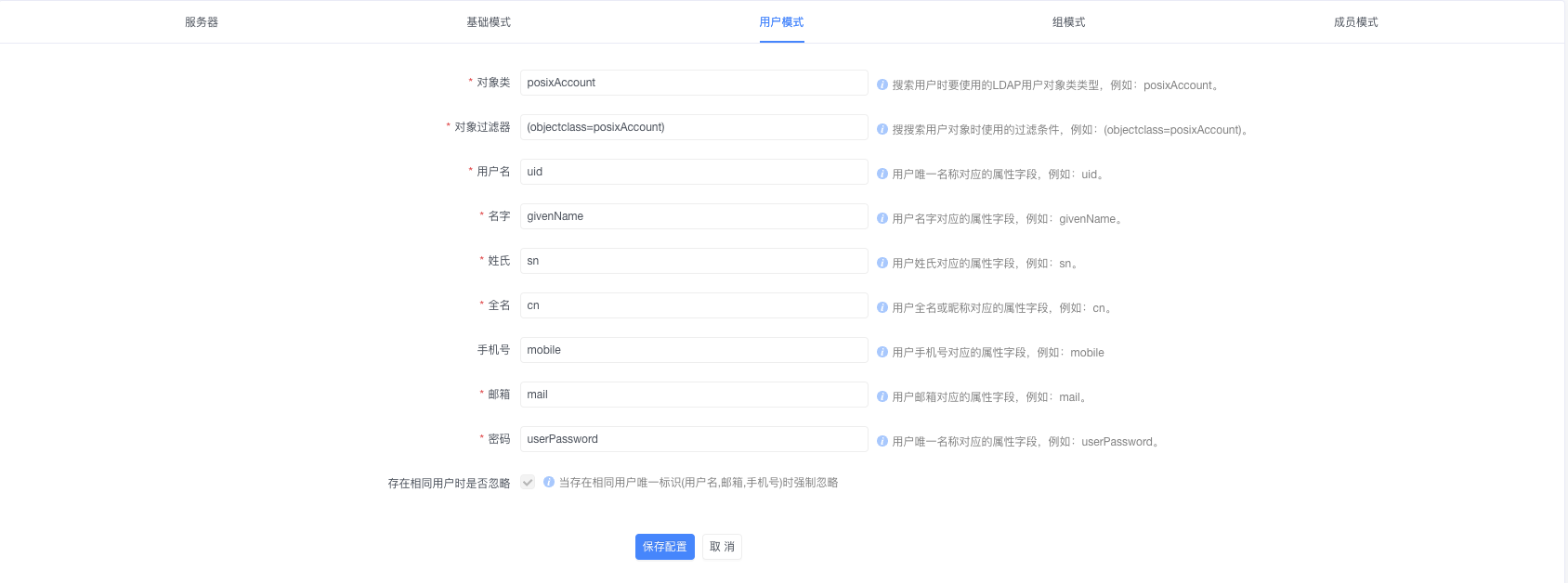

3. Configure User Schema

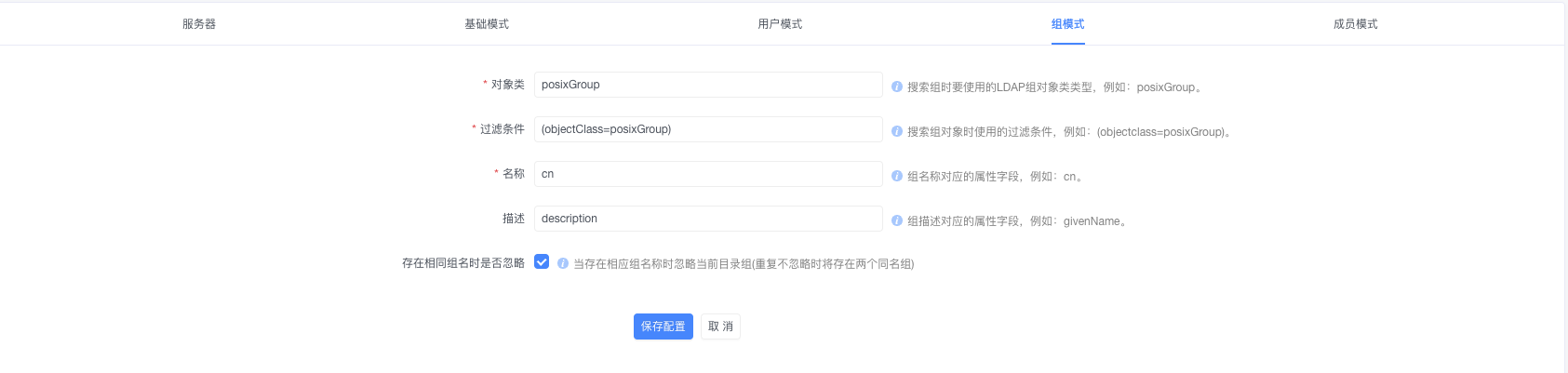

4. Configure Group Schema

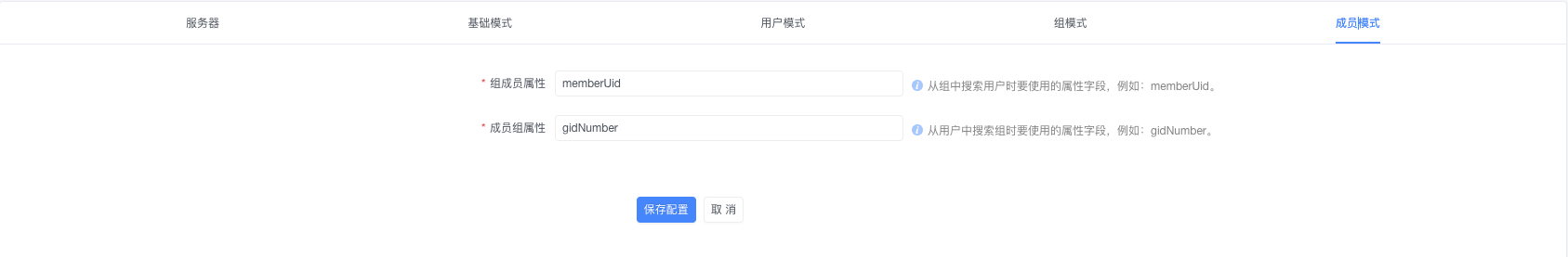

5. Configure Member Schema

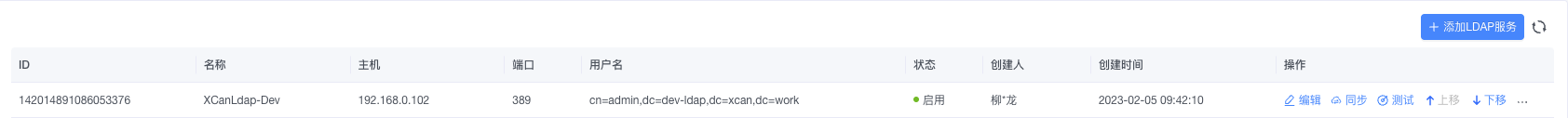

Step 4: Verify the Added LDAP Directory Service

• Confirm that the LDAP directory service has been successfully added.



Quota Limits

• A maximum of 10 LDAP directory services can be configured.

Notes

• The system automatically synchronizes enabled LDAP directory services every 5 minutes to ensure data is up to date.
• When deleting a directory, the system does not automatically remove synchronized user and group information to maintain business data integrity.
• To delete users or groups that no longer exist in the directory, manually delete them under "AngusGM" → "Organization & Personnel", or use the "Delete Directory and Data" operation to remove all related information.
