Scenario Management

The Scenario Management module in AngusTester supports graphical orchestration and automated execution of complex testing processes, enabling end-to-end management from scenario design to result analysis.

I. Scenario Orchestration Operations

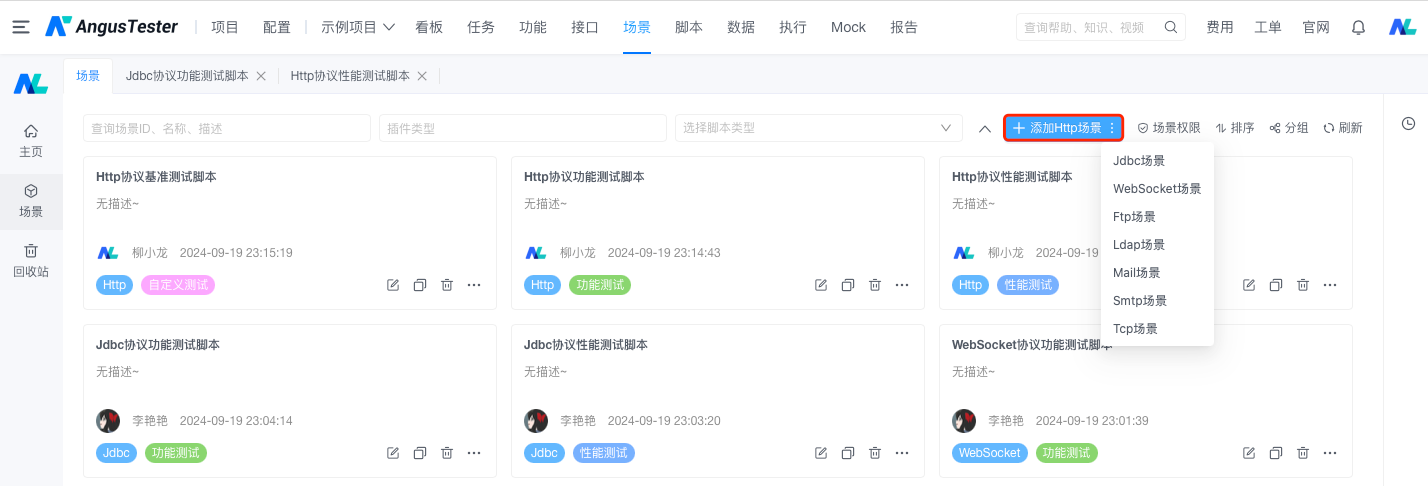

1. Create HTTP Scenario

Description: Build HTTP protocol testing workflows
Steps:

1. Scenario Management Click "Add HTTP Scenario"

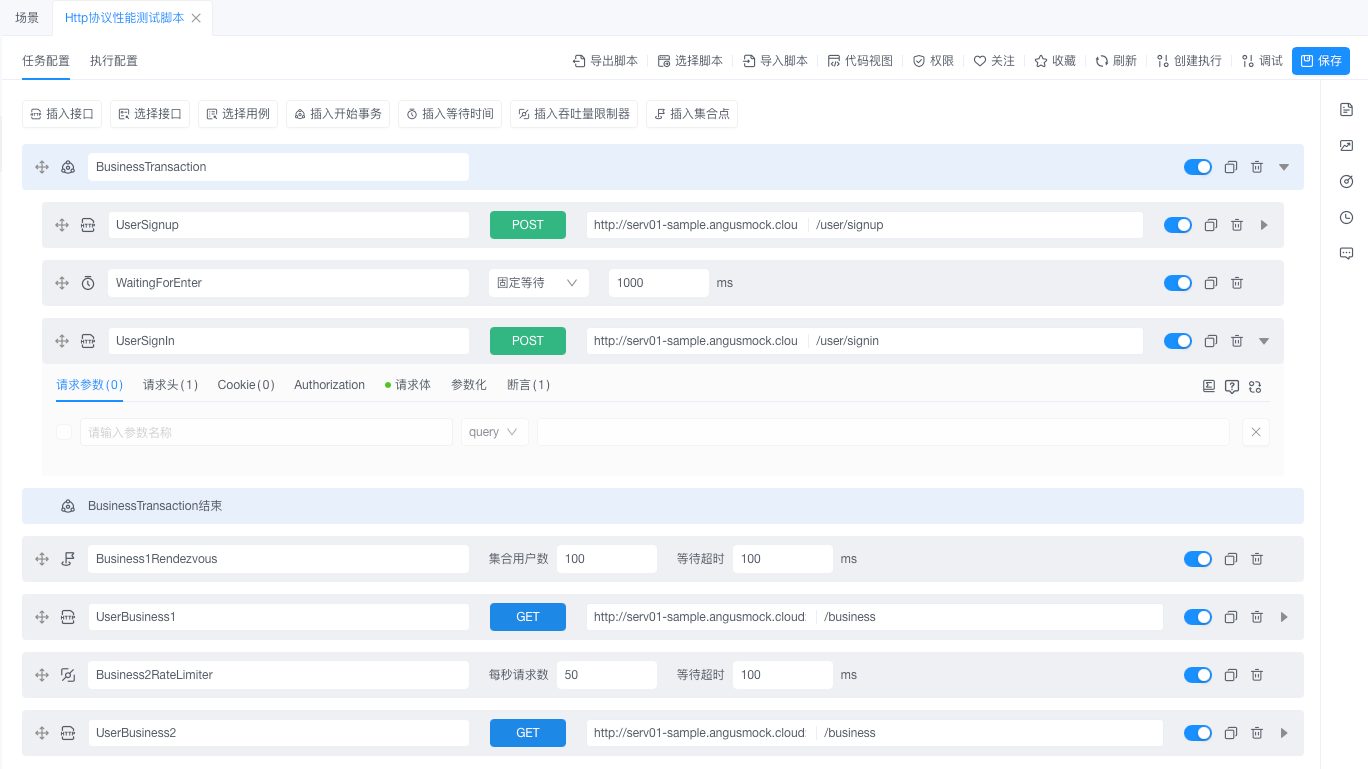

2. Orchestrate the test flow:
   • Drag request nodes (GET/POST, etc.)
   • Configure parameter extractors (associate variables)
   • Set assertion rules

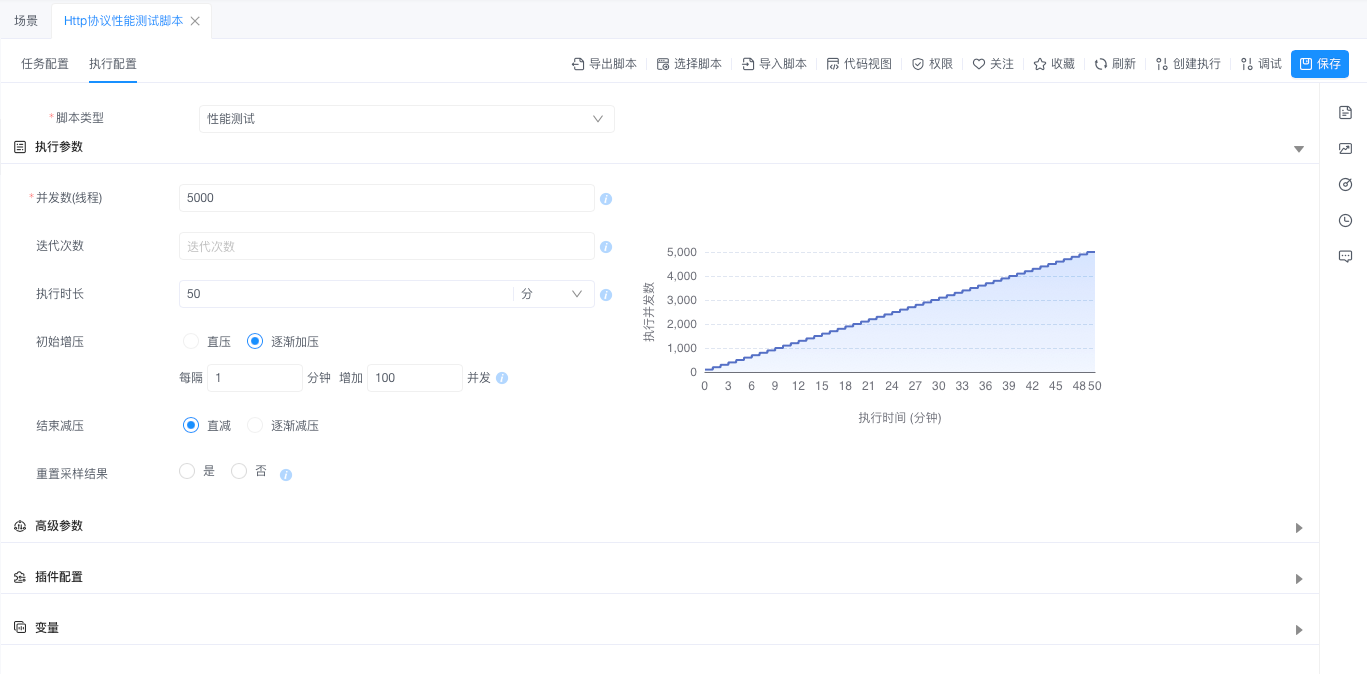

3. Execution Configuration Set concurrency parameters:
   • Thread model (stepped/constant)
   • Timeout (default 30 seconds)
   • Loop strategy (iteration count)

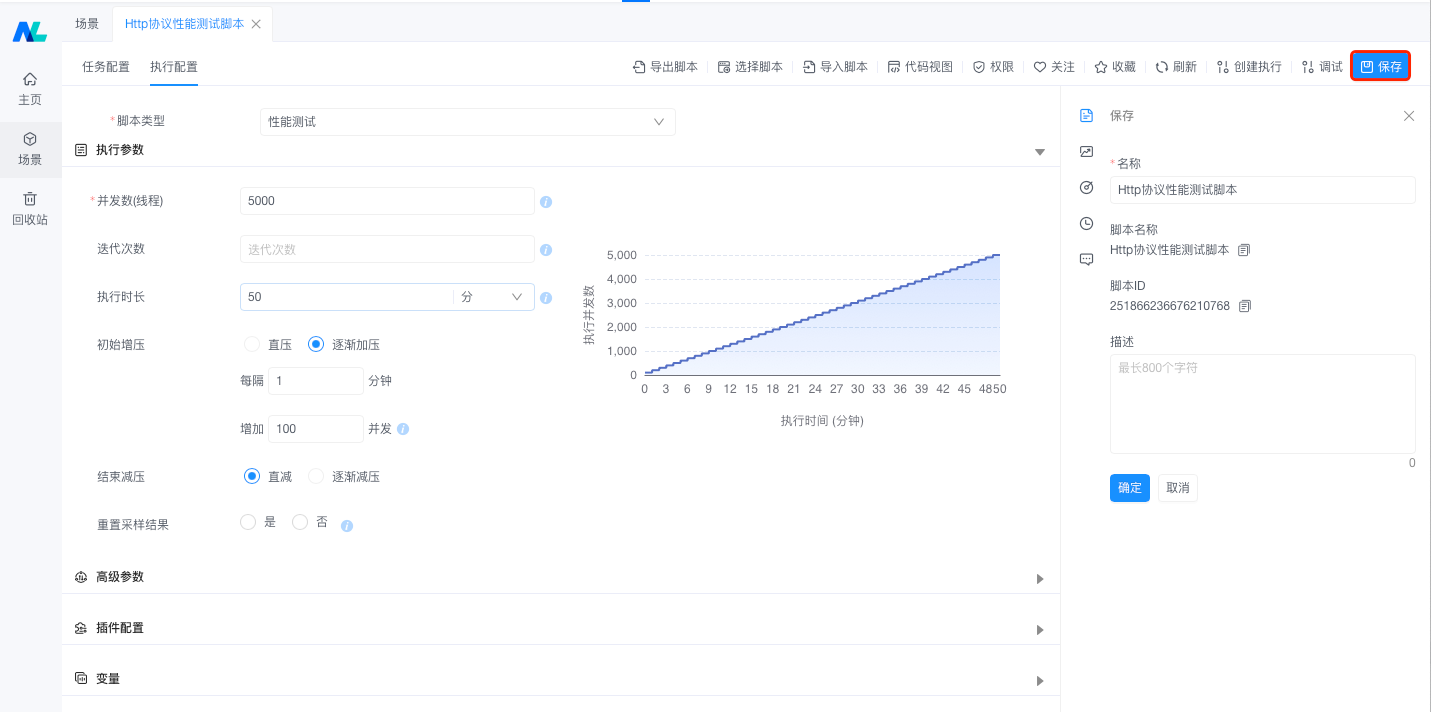

4. Click "Save" to name the scenario

   ⚠️ Names must include business module identifiers

2. Import APIs/Test Cases

Description: Reuse existing API configurations
Steps:

1. Click "Select API" on the scenario orchestration page
2. Filter conditions:
   • By module tree
   • By tags
3. Selected APIs automatically generate request nodes
   ❗ Variable associations require manual configuration

II. Scenario Debugging & Validation

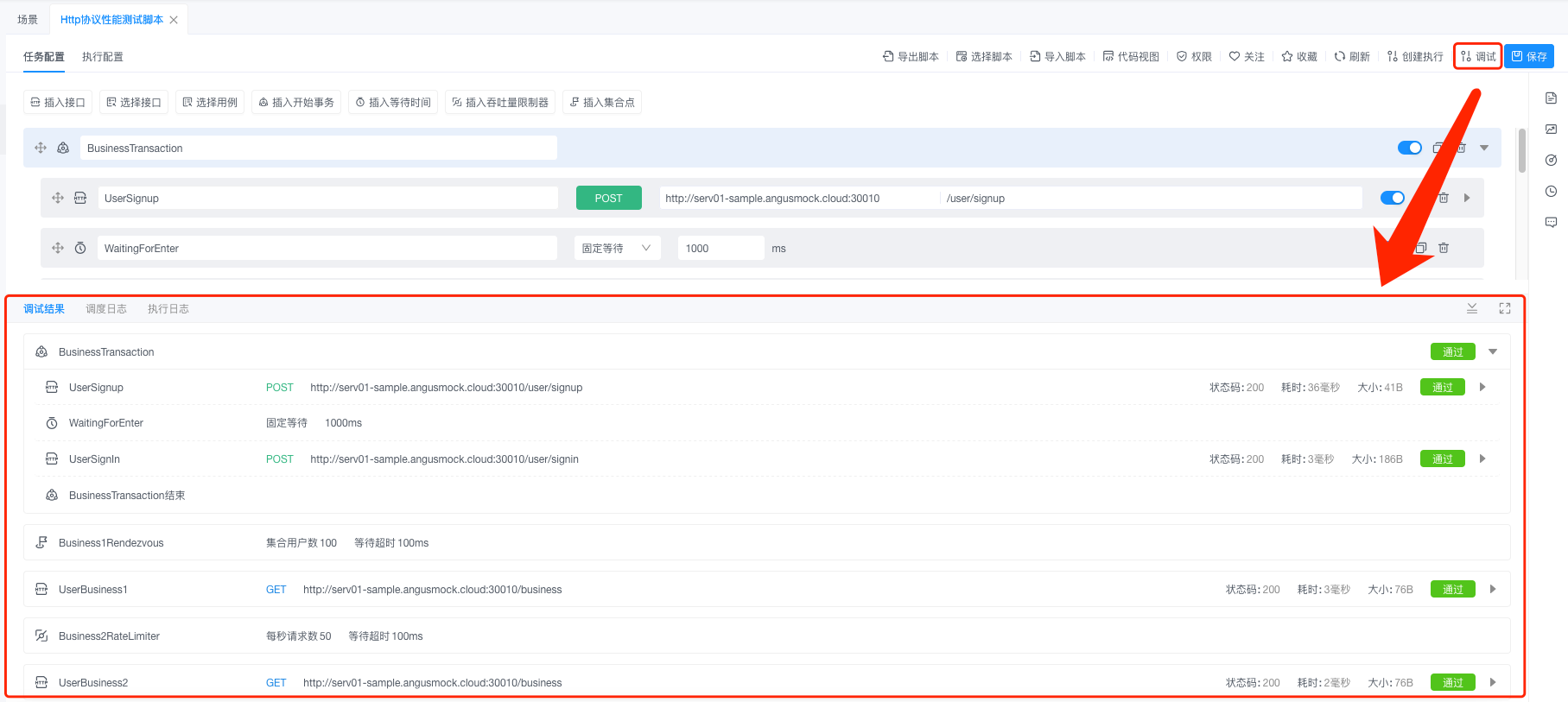

1. Debug Scenario Logic

Description: Verify process correctness
Steps:

1. Scenario Details Click "Debug"

2. View debug results:
   • Request flow diagram (green/red markers)
   • Variable transfer traces
   • Assertion failure details
     ⚠️ Debug data is excluded from statistics

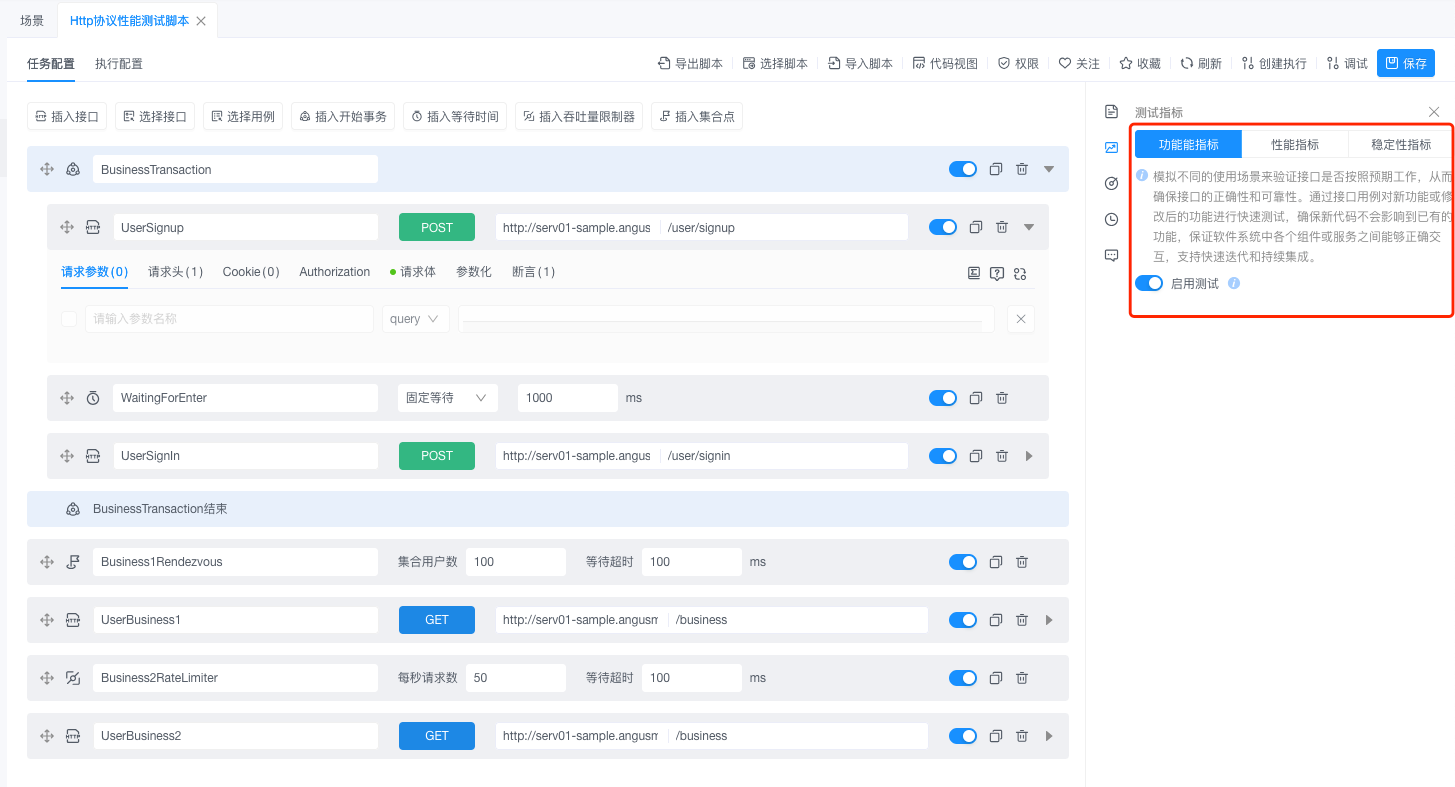

2. Configure Test Metrics

Description: Define performance acceptance criteria
Steps:

1. Scenario List Click target scenario
2. Test Metrics Enable monitoring types:
   • Success rate (≥99.5%)
   • P95 response time (≤500ms)
   • Error rate threshold (≤0.1%)

     ❗ Scenarios failing metrics are marked as failed

3. View Test Results

Description: Analyze scenario execution data
Steps:

1. Scenario Details Click "Test Results"
2. Key views:
   • Success rate trend chart
   • Response time distribution (box plot)
   • Error type aggregation


III. Scenario Task Management

1. Execute Scenario Tests

Description: Trigger formal test tasks
Steps:

1. Scenario List Click "Execute Test"
2. Select execution mode:
   • Immediate execution (single run)
   • Scheduled execution (Cron expression)
3. Automatically generate task ID (TASK_YYYYMMDD)

2. Generate Test Tasks

Description: Create traceable test tasks
Steps:

1. Scenario Details Click "Generate Test Task"
2. Configure task attributes:
   • Associated iteration (required)
   • Owner (default: creator)
   • Deadline
     ⚠️ Task status syncs to scenario cards

3. Task Status Management

Description: Adjust test task lifecycle
Steps:

• Reopen:
  1. Click "Reopen Task"
  2. Status reverts to Pending (retains history)
• Restart:
  1. Click "Restart Task"
  2. Status resets to In Progress (clears history)
• Delete Task:
  1. Click "Delete Task"
  2. Disassociates from scenario

IV. Scenario Maintenance

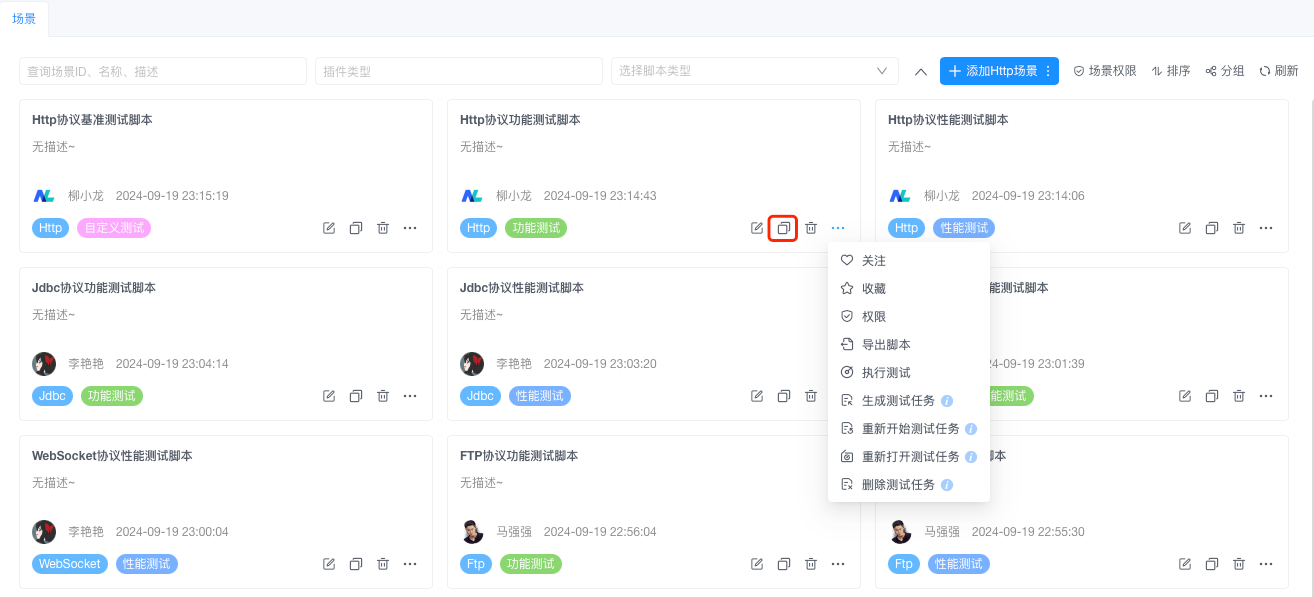

1. Clone Scenarios

Description: Quickly create similar scenarios
Steps:

1. Scenario List Click clone icon

2. System automatically:
   • Creates copy (appends "_copy" to name)
   • Duplicates all node configurations
     Requires manual adjustment of key parameters

2. Export Scenario Scripts

Description: Backup scenario configuration scripts
Steps:

1. Scenario Details Click "Export Script"
2. Select format:
   • JSON (complete structure)
   • YAML (compact format)

3. Delete Scenarios

Description: Clean up invalid scenarios
Steps:

1. Scenario List Select target scenario
2. Click "Delete" action
3. Confirm by entering scenario name
   ⚠️ Associated tasks are automatically unbound

V. Collaboration & Traceability

1. Scenario Comments

Description: Record collaboration information
Steps:

1. Scenario Details → Comments Enter content
2. Supports @mentions for notifications
3. Click "Post" to generate record

2. Activity Audit

Description: Track scenario change history
Steps:

1. Scenario Details → Activity
2. View operations:
   • Configuration changes (field-level comparison)
   • Status changes (with executor)
   • Task generation records
