Dataset Management

The AngusTester Dataset Management module enables unified management and dynamic invocation of test data, supporting multiple data sources to build datasets and improving test data reusability.

1. Dataset Creation Operations

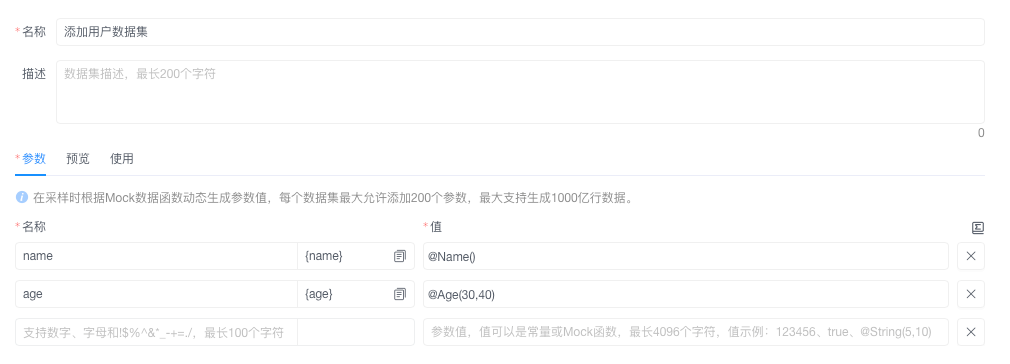

1. Add Static Dataset

Description: Generate dynamic parameter values using Mock functions
Steps:

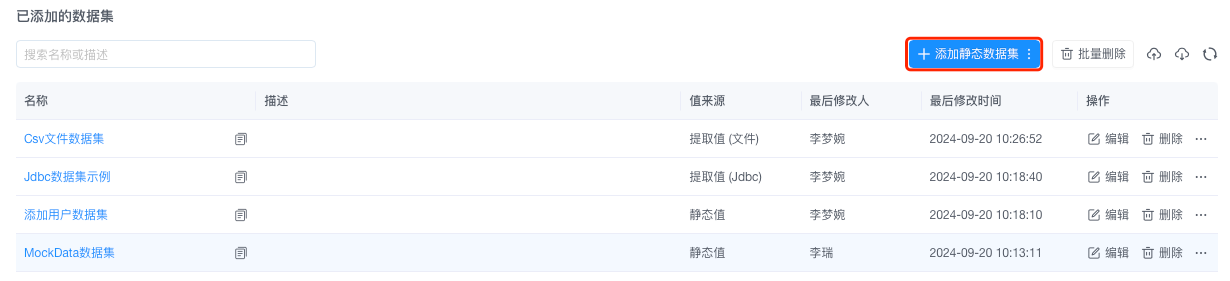

1. Data → Dataset Management Click "Add Static Dataset"

2. Configure key parameters:
   • Name format: [Purpose]_Dataset (e.g., Login_User_Data)
   • Parameter definition (Name/Type/Value):
     • Value type: Constant/Mock function (e.g., @Username())
     • Password type: Encrypt sensitive fields

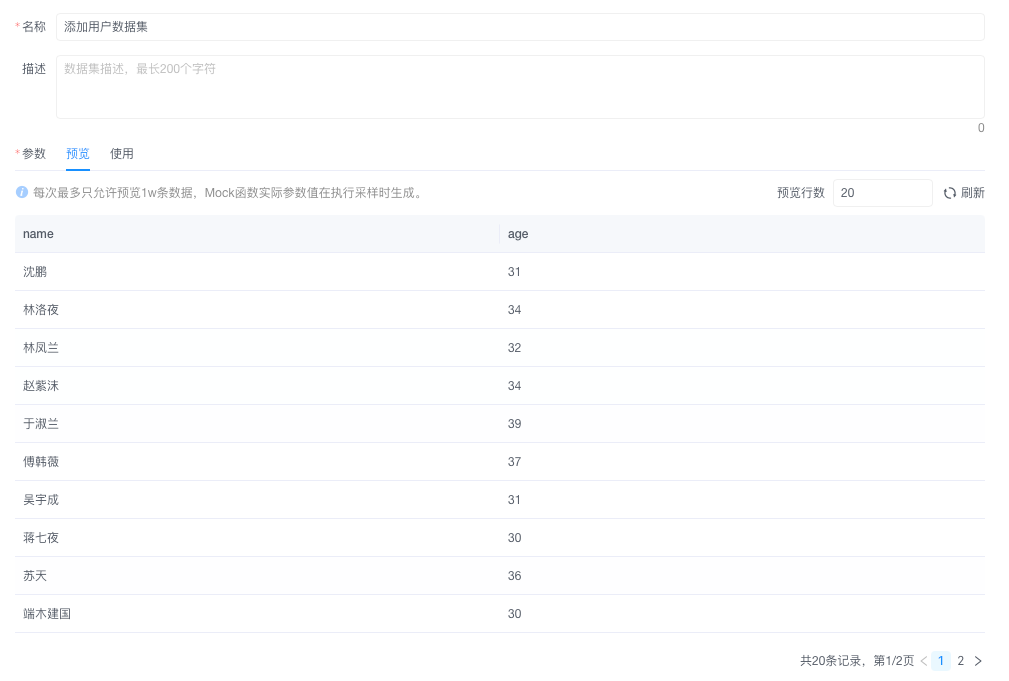

3. Verify data generation in the Preview tab

   ⚠️ Supports up to 200 parameters per dataset.

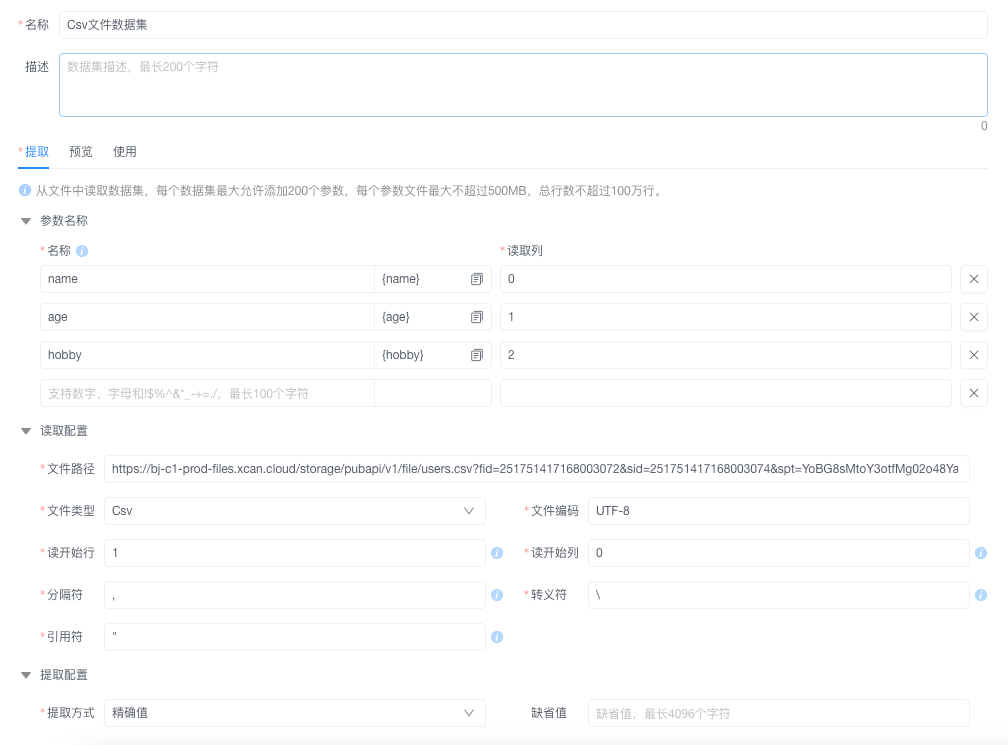

2. Add File Extraction Dataset

Description: Import data in bulk from external files
Steps:

1. Click the dropdown Add Static Dataset▼ and select "File Extraction Dataset"
2. Configure extraction rules:
   • File path (supports CSV/XLSX)
   • Start position (row + column index)
   • Column mapping (file column → parameter name)

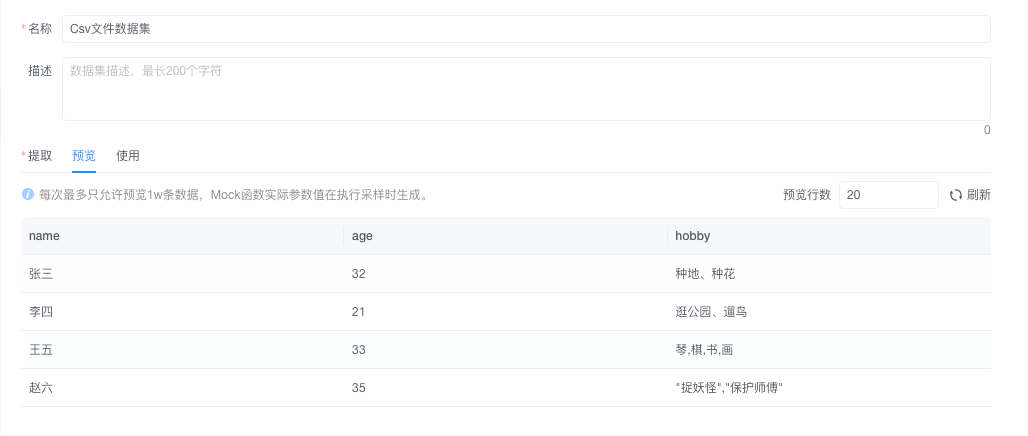

3. Check data mapping accuracy in the Preview tab

   ❗ Dataset must be reloaded if the file changes.

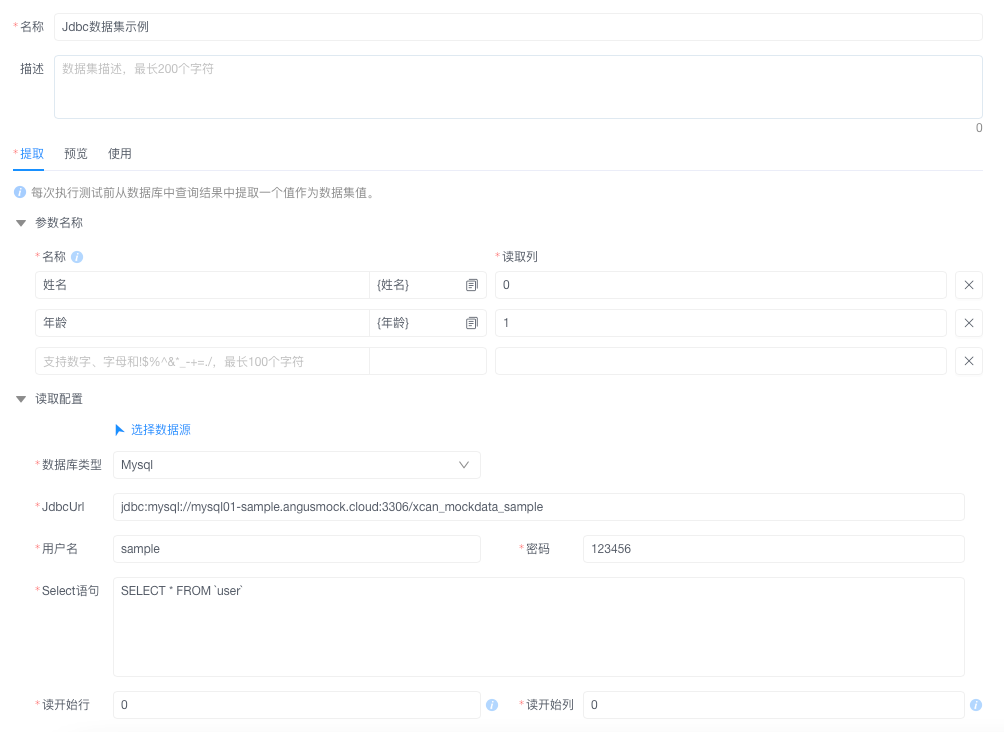

3. Add JDBC Extraction Dataset

Description: Build datasets using SQL queries
Steps:

1. Click the dropdown Add Static Dataset▼ and select "JDBC Extraction Dataset"
2. Configure database connection:
   • Data source (must be pre-configured)
   • SQL query (SELECT statement)
   • Column mapping (result set fields → parameter name)

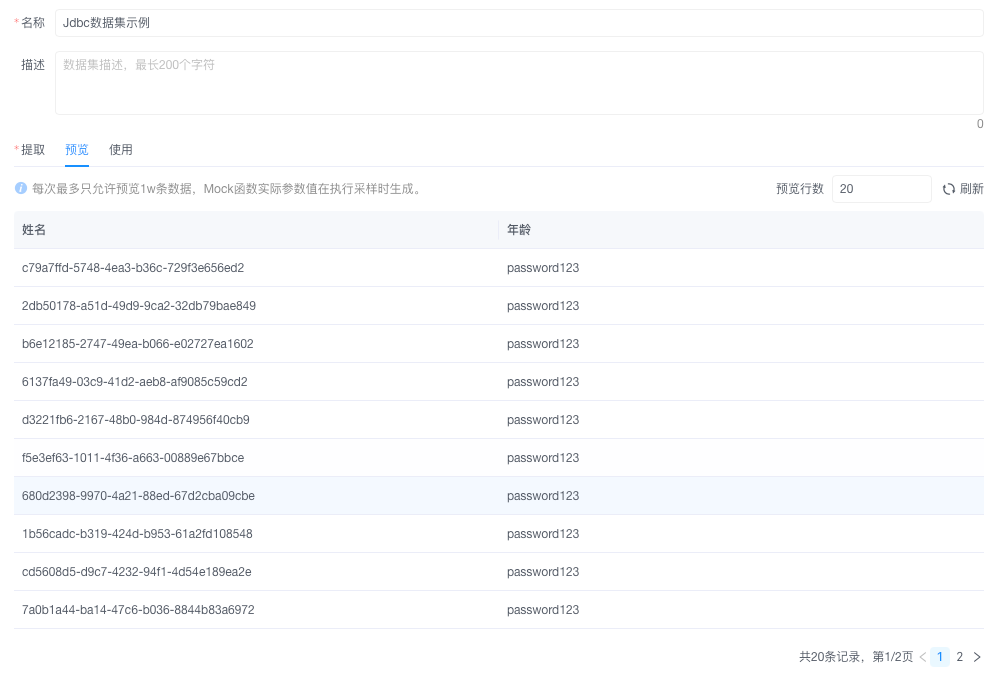

3. Verify query results in the Preview tab

   ⚠️ Sensitive fields must be encrypted.

2. Dataset Maintenance Operations

1. Import Dataset

Description: Bulk import datasets via YAML files
Steps:

1. Click Import in Dataset Management
2. Upload a compliant YAML file
3. The system automatically:
   • Validates the format
   • Executes overwrite/skip policies

2. Clone Dataset

Description: Quickly create similar datasets
Steps:

1. Click Clone in the dataset list
2. The system automatically:
   • Creates a copy (appends "-Copy.xxx" to the name)
   • Retains all parameter configurations
     Key parameters must be adjusted manually

3. Edit Dataset

Description: Update dataset configurations
Steps:

1. Click Edit in the dataset list
2. Modifiable fields:
   • Name/description
   • Parameter additions/deletions
   • Extraction rules

4. Batch Delete

Description: Clean up obsolete datasets
Steps:

1. Select target datasets
2. Click Batch Delete
3. Confirm the operation
   ❗ Associated references must be removed first.

3. Dataset Application Integration

1. Parameterized API Reference

Description: Dynamically invoke data in API requests
Steps:

1. Open the target API in API → Service Management

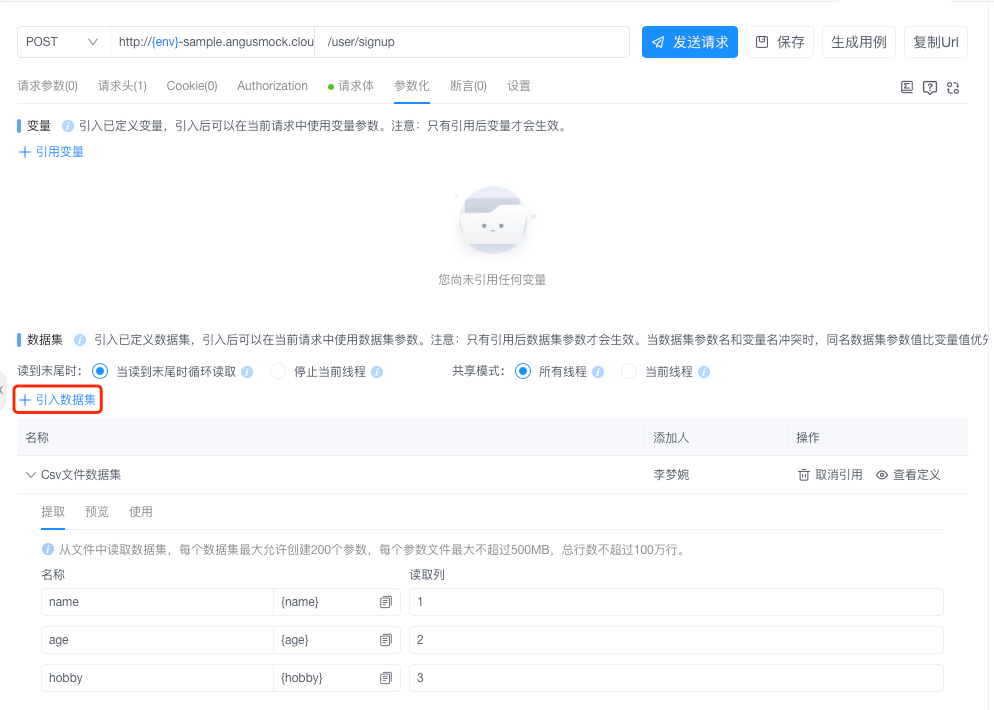

2. Click Introduce Dataset in the Parameterization tab

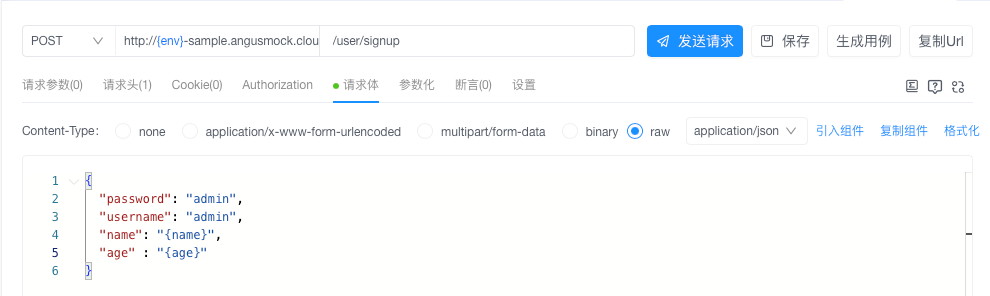

3. Enter parameter values as {ParameterName}

   ⚠️ Unresolved parameters are highlighted in red.

2. Parameterized Scenario Reference

Description: Apply data in bulk within test scenarios
Steps:

1. Open the target scenario in Scenario Management
2. Add a reference in Execution Config → Dataset
3. Enter step parameters as {ParameterName}
   ❗ Cross-API variables must use consistent naming.

4. Data Export Management

1. Export Single Dataset

Description: Backup or share dataset configurations
Steps:

1. Click Export on the dataset details page
2. Select format:
   • YAML (complete configuration)
   • CSV (raw data)

2. Export All Datasets

Description: Full backup of the dataset system
Steps:

1. Click Export in Dataset Management
2. Download a ZIP archive (contains YAML files)

Dataset Field Information

Parameter	Field Name	Type	Required	Length Limit	Description
ID	id	bigint	Conditional	/	Unique identifier; mandatory for modifications
Project ID	projectId	long	Yes	/	Unique identifier of the associated project
Dataset Name	name	string	Yes	≤100	Unique identifier name for the dataset
Description	description	string	No	≤200	Functional description of the dataset
Parameter List	parameters	list	Yes	/	List of parameter definitions (at least one required)
Extraction Rules	extraction	object	No	/	Configuration for data extraction rules
Extraction Status	extracted	boolean	Read-only	/	Whether data extraction is complete
Data Source	dataSource	enum	Read-only	/	Data Source Enum: Static/Value Extract/File Extract/Http Extract/Jdbc Extract
Tenant ID	tenantId	long	Read-only	/	ID of the associated tenant
Creator ID	createdBy	long	Read-only	/	ID of the dataset creator
Creator Name	createdByName	string	Read-only	/	Name of the creator
Creation Time	createdDate	datetime	Read-only	/	Dataset creation timestamp
Last Modifier ID	lastModifiedBy	long	Read-only	/	ID of the last modifier
Last Modifier Name	lastModifiedByName	string	Read-only	/	Name of the last modifier

Parameter Fields (parameters)

Parameter	Field Name	Type	Required	Length Limit	Description
Parameter Name	name	string	Yes	≤100	Unique identifier name for the parameter
Parameter Value	value	string	No	≤200	Default parameter value
Is Mock Value	hasMockValue	boolean	Read-only	/	Whether a mock value is used

Extraction Configuration (extraction)

Refer to the testing specification: Parameterization → Extraction Configuration

Data Source (dataSource)

Enum Value	Description
STATIC_VALUE	Static Value
EXTRACT_VALUE	Value Extraction
EXTRACT_FILE	File Extraction
EXTRACT_HTTP	HTTP Extraction
EXTRACT_HTTP_SAMPLING	HTTP Sampling Extraction
EXTRACT_JDBC	JDBC Extraction
