Installing AngusAgent

AngusAgent serves as the core component of the AngusTester distributed testing system, providing three key capabilities:

1. Task Execution Engine: Launches and manages script execution tasks.
2. Service Simulation Platform: Runs and manages Mock services.
3. Node Monitoring Center: Collects and reports node resource metrics in real-time.

The default complete installation package of AngusAgent includes the following components:

• AngusRunner: Test task and data generation task executor
• MockService: Interface simulation service
• AngusAgent: Node agent service
• AngusProxy: Request proxy service
• plugins: Test plugin collection

I. Prerequisites

• Ensure the target port 6807 is available.
• Operating System: Supports Linux / macOS / Windows Server.
• Java Environment: For non-container installations, ensure JDK17+ is installed.

II. Online Installation (Recommended)

1. Log in to the AngusTester console.
2. Navigate to: Configuration -> Nodes → Add Node.
3. Enter node information (IP/account/password).

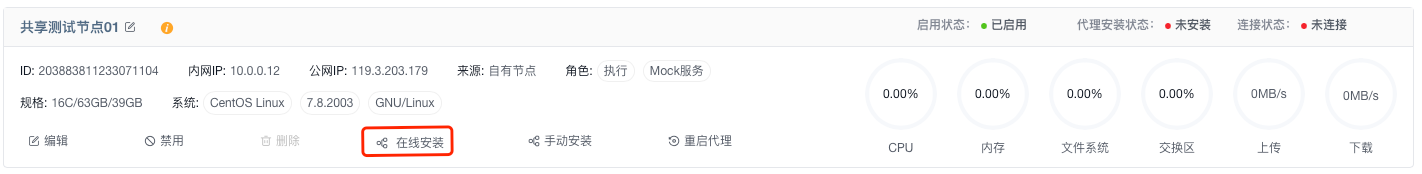

4. Click the "Install Agent Online" button.

⚠️ Installation Requirements:

• Only system administrators and AngusTester application administrators can configure installations.
• The node's SSH port must be open (default: 22).
• The account must have root privileges.
• Network connectivity must be established without firewall restrictions.

🛠️ Troubleshooting Installation Failures:
If online installation fails, use the script installation method below.

III. Script Installation

# Create installation directory
mkdir -p /opt/AngusAgent && cd /opt/AngusAgent

# Fetch and execute the installation script (copy the command generated in the console)
curl -s "https://bj-c1-prod-files.xcan.cloud/storage/pubapi/v1/file/install-agent.sh?fid=297761877096660998" | bash -s 1.0.0 299082246680215554 \
  'https://bj-c1-prod-apis.xcan.cloud/tester/openapi2p/v1/ctrl' \
  aWpbSRQ4OwXiOA1_8AJFVgQY8cDBkJUq4PSLwIb9D3lFoWJOR1hsFUG_EyhWUq5CNu-E7K1X29ZffzbhnVZylXTMFnFBMWKXX-EcMohOoMplWVbA78S0WayLuzsaPF6k \
  1 203883811233071104

IV. Manual Configuration Installation

1. Run the following command or click Download Installation Package

    curl -LO https://nexus.xcan.cloud/repository/release/package/AngusAgent-Full-1.0.0.zip

2. After downloading the package, extract it to the target directory (e.g., /opt/AngusAgent)

   # Extract the package to the target directory
   mkdir -p /opt/AngusAgent
   unzip -qo AngusAgent-Full-1.0.0.zip -d /opt/AngusAgent

   # Navigate to the installation directory
   cd /opt/AngusAgent

3. Configure core parameters:

   # Configure identity information
   # vi conf/agent.properties
   ##########################################
   angusagent.principal.tenantId=Your Tenant ID
   angusagent.principal.deviceId=Unique Node ID

   # Configure server controller address and authentication
   # vi conf/remoting.properties
   ##########################################
   remoting.ctrlUrlPrefix=Controller URL
   remoting.ctrlAccessToken=Your Node Authorization Token

   Parameter Retrieval:

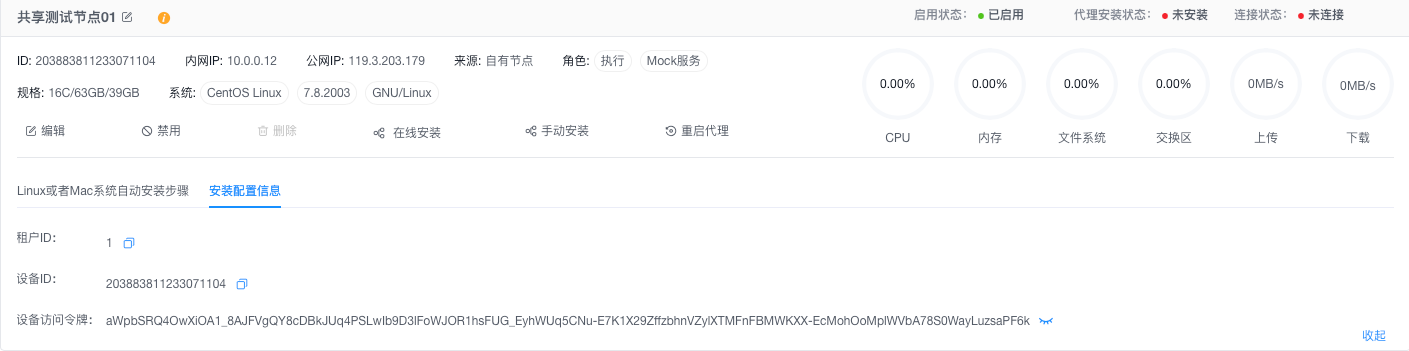

   View parameters in Configuration -> Nodes -> Installation Configuration.


4. Run the agent

   ./startup-agent.sh

V. Verification

• Health Check

  curl -i http://localhost:6807

  # Expected response:
  HTTP/1.1 200 OK
  Content-Type: application/json

  {
    "app": "AngusAgent",
    "version": "1.0.0",
    "health": {"status": "UP"},  # Key status metric
    "principal": {
      "tenantId": "1",
      "deviceId": "205198142092607130"
    }
  }

• Console Verification
  1. Access the AngusTester console.
  2. Navigate to: Node Management → Node List.
  3. Check the target node status:
     • ✅ Connection Status: Should show Connected.
     • ⏱️ Last Heartbeat: Updated within 2 minutes.

  ⏳ Status synchronization may take up to 2 minutes. If the node remains disconnected, check the network and configuration.

VI. Service Management

• Linux/macOS

# Start service
./startup-agent.sh
# Stop service
./shutdown-agent.sh
# View logs
tail -f logs/agent.log

VII. Configuration Reference

Agent Service Configuration (agent.properties)

#-----------------------------------------------------------------------------------
# AngusAgent Service Configuration
#-----------------------------------------------------------------------------------
## IP address the agent binds to (default: 0.0.0.0, listens on all interfaces)
angusagent.serverIp=0.0.0.0
## Port number the agent binds to (default: 6807)
angusagent.serverPort=6807
## Enable SSL for the Netty HTTP server (default: false)
angusagent.useSsl=false
## Enable Netty logging (recommended for debugging only, default: false)
angusagent.enableNettyLog=false
## Configure request log level (options: NONE, BASIC, HEADERS, FULL)
### - NONE: No logging
### - BASIC: Logs request method, URL, response status, and execution time (default)
### - HEADERS: Logs basic info + request/response headers
### - FULL: Logs headers, body, and metadata of requests/responses
angusagent.requestLogLevel=FULL
## Thread name prefix for request processing (default: AngusAgent-Thread)
angusagent.threadNamePrefix=AngusAgent-Thread
#-----------------------------------------------------------------------------------
# AngusAgent Service Management Configuration
#-----------------------------------------------------------------------------------
## Base path for management endpoints (fixed as /actuator)
#angusagent.management.endpointsBasePath=/actuator
## Allow CORS for management endpoints (default: false)
angusagent.management.endpointsAllowCors=false
#-----------------------------------------------------------------------------------
# Authentication Configuration
#-----------------------------------------------------------------------------------
## Tenant ID (required for private deployments, default: empty)
angusagent.principal.tenantId=
## Device (Node) ID (required for private deployments, default: empty)
angusagent.principal.deviceId=
#-----------------------------------------------------------------------------------
# Data Push Configuration
#-----------------------------------------------------------------------------------
# JVM metrics push interval (default: 15 seconds)
angusagent.jvmMetrics.pushIntervalInSecond=15
# Node info registration push interval (default: 300 seconds)
angusagent.nodeInfo.pushIntervalInSecond=300
# Node usage registration push interval (default: 15 seconds)
angusagent.nodeUsage.pushIntervalInSecond=15

Data Exchanger Configuration (remoting.properties)

#-----------------------------------------------------------------------------------
# Remote Client Configuration
#-----------------------------------------------------------------------------------
# Remote server host address (direct connection mode for test environments only, default: 127.0.0.1:5035)
remoting.serverHost=
# AngusTester controller service discovery URL prefix. If unconfigured or connection fails, uses serverHost as fallback
remoting.ctrlUrlPrefix=
## Access token for AngusCtrl API (required for private deployments, default: empty)
remoting.ctrlAccessToken=
## Heartbeat message interval (must be less than serverMaxAllowHeartbeat, default: 10000 ms)
remoting.heartbeatInterval=10000
# Allow reconnection after disconnection (default: true)
remoting.allowReconnect=true
# Reconnection interval after disconnection
remoting.reconnectInterval=5000
#-----------------------------------------------------------------------------------
# Remote Server/Client Common Configuration
#-----------------------------------------------------------------------------------
# Timeout for synchronous message sending (stops waiting for response after this duration, default: 60000 ms)
remoting.sendTimeout=60000
#-----------------------------------------------------------------------------------
