Data Source Management

The Data Source Management module in AngusTester supports multi-type database connection configurations, enabling dynamic test data generation and efficient extraction.

I. Data Source Connection Management

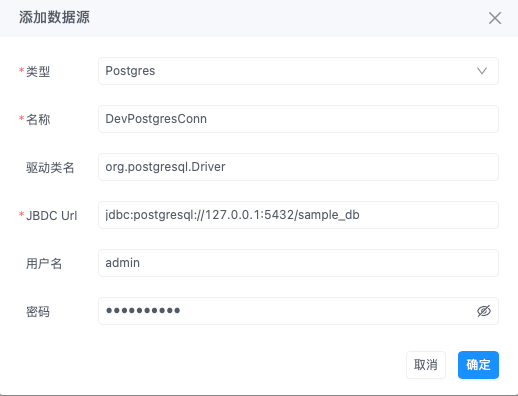

1. Add Data Source

Description: Create a new database connection configuration
Steps:

1. Navigate to Data → Data Source Management and click "Add Data Source"

2. Fill in key parameters:
   • Naming format: [Environment]_[Database Type] (e.g., PROD_MySQL)
   • Database type (MySQL/Oracle/PostgreSQL)
   • JDBC URL (including IP port/database name)
   • Authentication credentials (username + encrypted password)

     ⚠️ Firewall policies must allow the specified port

2. Test Connection

Description: Verify database connectivity and configuration accuracy
Steps:

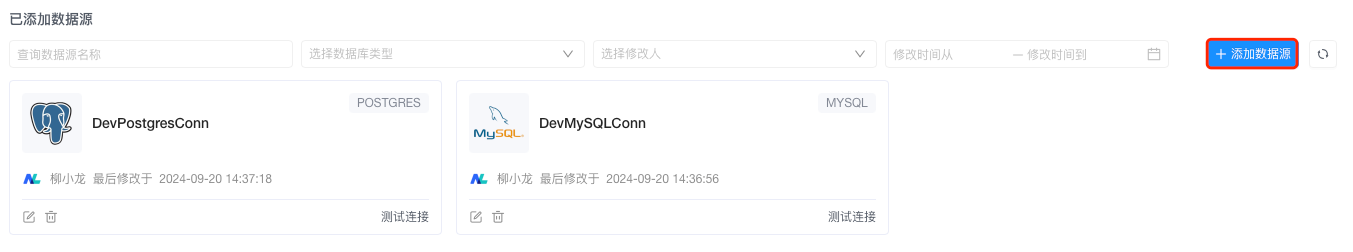

1. Select the target data source in the Data Source List
2. Click the "Test Connection" action button
3. Check the result prompt:
   • Green success prompt (includes database version)
   • Red failure prompt (includes specific error code)
     ❗ Check network policies and account permissions if failed

II. Data Source Maintenance Operations

1. Edit Data Source

Description: Update connection configurations or authentication credentials
Steps:

1. Click the "Edit" icon for the target data source in the Data Source List
2. Modifiable fields:
   • JDBC URL (when database name changes)
   • Username/password (after periodic rotation)
   • Connection pool parameters (maximum connections)
     Re-test connection after modifications

2. Delete Data Source

Description: Remove obsolete database configurations
Steps:

1. Select the target data source in the Data Source List
2. Click the "Delete" action icon
3. Enter the data source name in the confirmation popup
   ⚠️ Associated variable/task configurations will automatically become invalid
