Variable Management

The Variable Management module in AngusTester enables centralized management and dynamic invocation of test data, supporting multiple data extraction methods to enhance testing flexibility and data reuse.

I. Variable Creation Operations

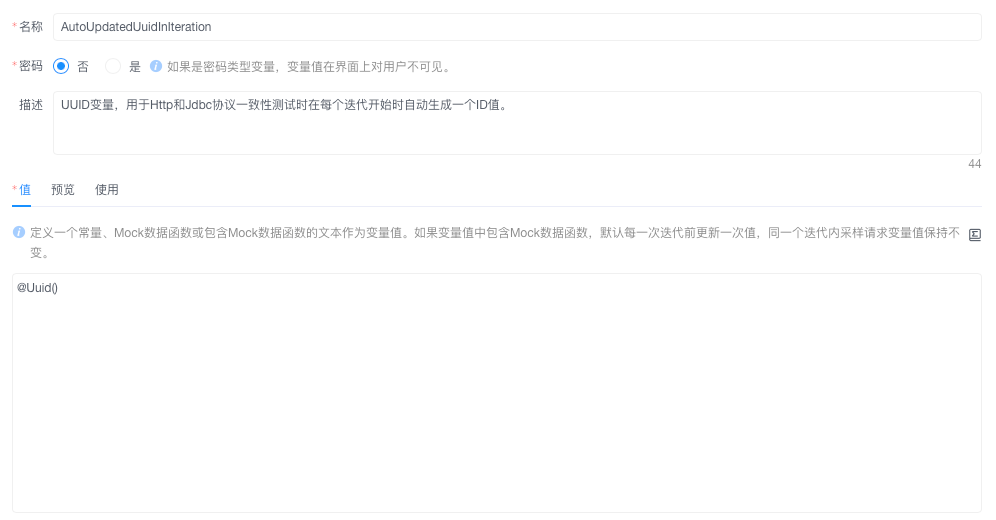

1. Add Static Variable

Description: Define fixed values or Mock data functions
Steps:

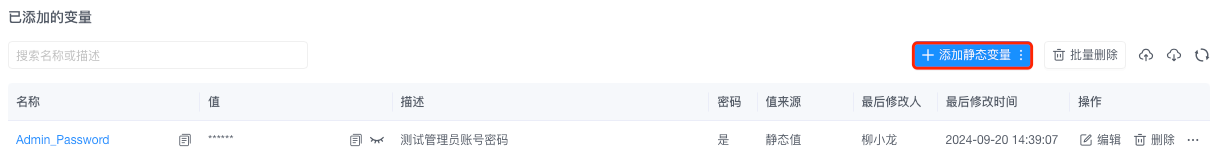

1. Data → Variables Click "Add Static Variable"

2. Configure key parameters:
   • Naming format: UPPERCASE_ENGLISH_DESCRIPTION (e.g., API_TOKEN)
   • Value type:
     • Constant (direct input)
     • Mock function (e.g., ${randomPhone})
   • Enable "Password Type" for sensitive data encryption

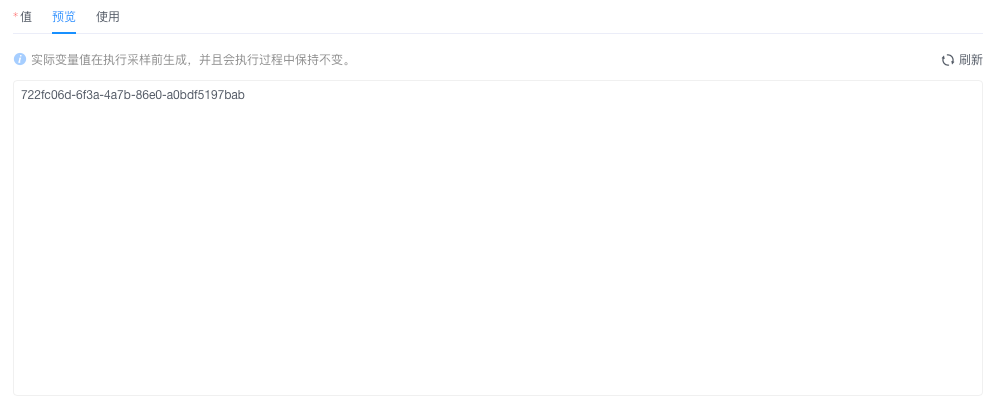

3. Test output in Preview tab

   ⚠️ Mock functions update per iteration

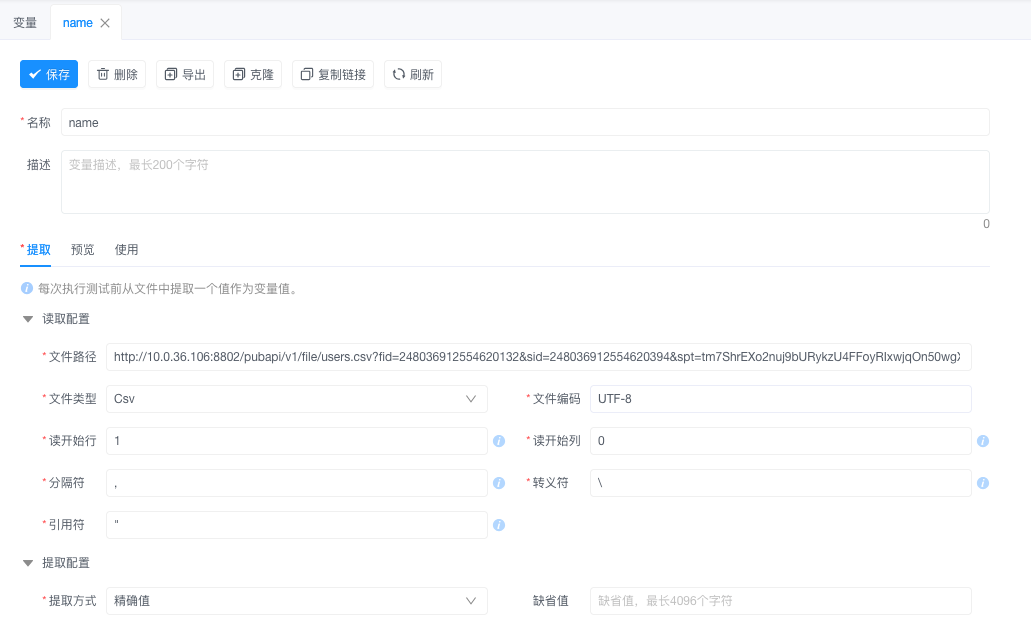

2. Add File Extraction Variable

Description: Extract data dynamically from external files
Steps:

1. Click Add Static Variable▼ and select "File Extraction Variable"
2. Configure extraction rules:
   • File path (supports CSV/TXT)
   • Start position (row + column index)
   • Data processing (regex/JSONPath)

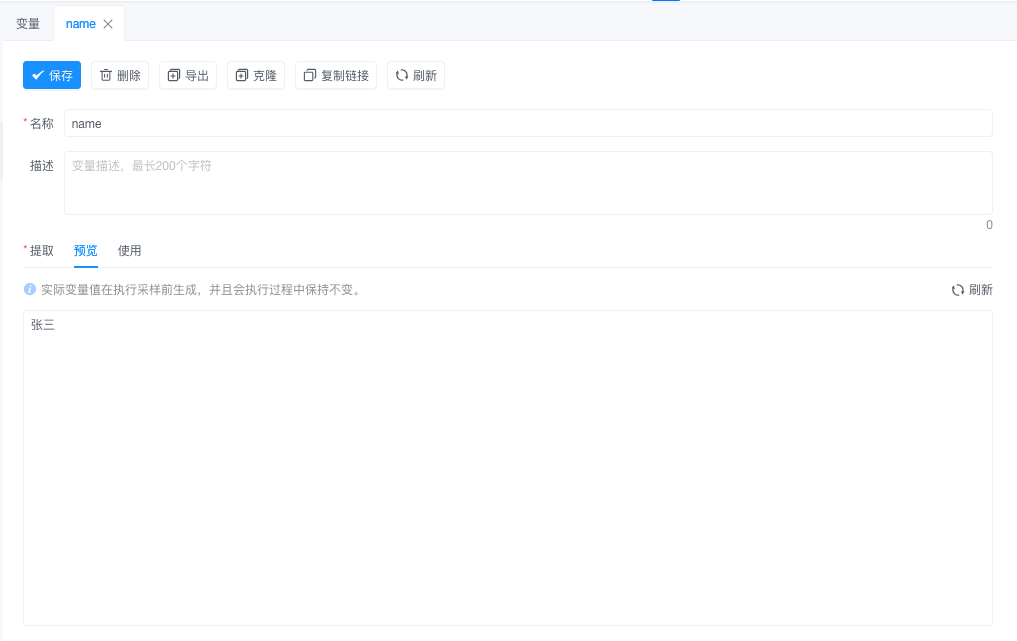

3. Verify data accuracy in Preview

   ❗ Manual refresh required for file changes

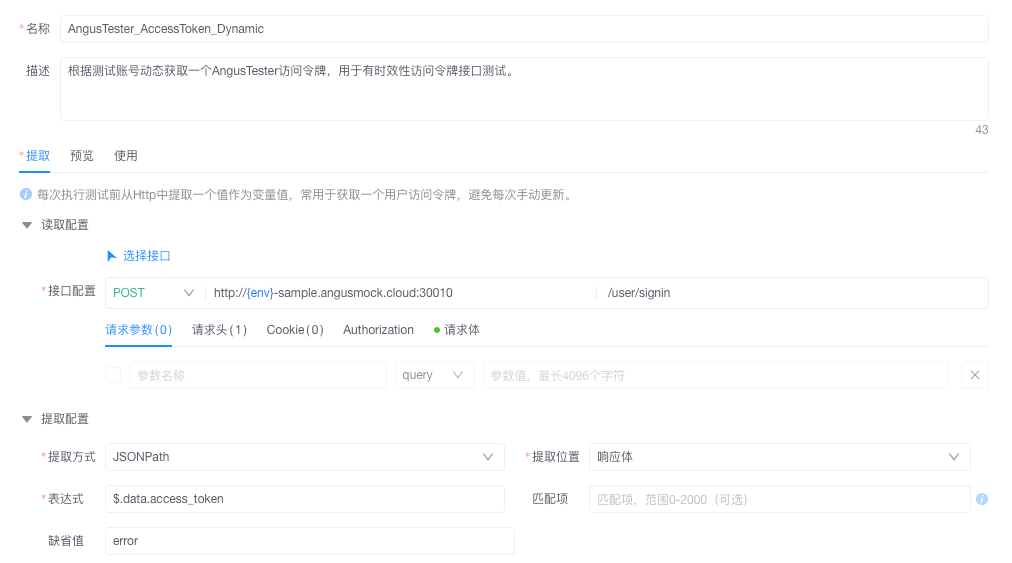

3. Add HTTP Extraction Variable

Description: Obtain dynamic values via API
Steps:

1. Click Add Static Variable▼ and select "HTTP Extraction Variable"
2. Configure request parameters:
   • URL (complete API endpoint)
   • Method (GET/POST)
   • Extractor (JSONPath/XPath)

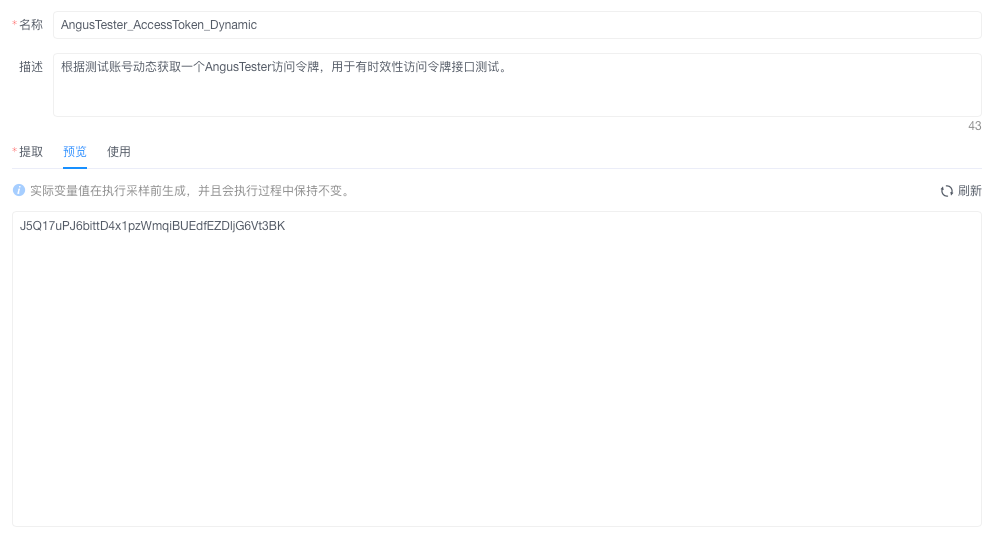

3. Test API response in Preview

   ⚠️ Requires network access and functional API

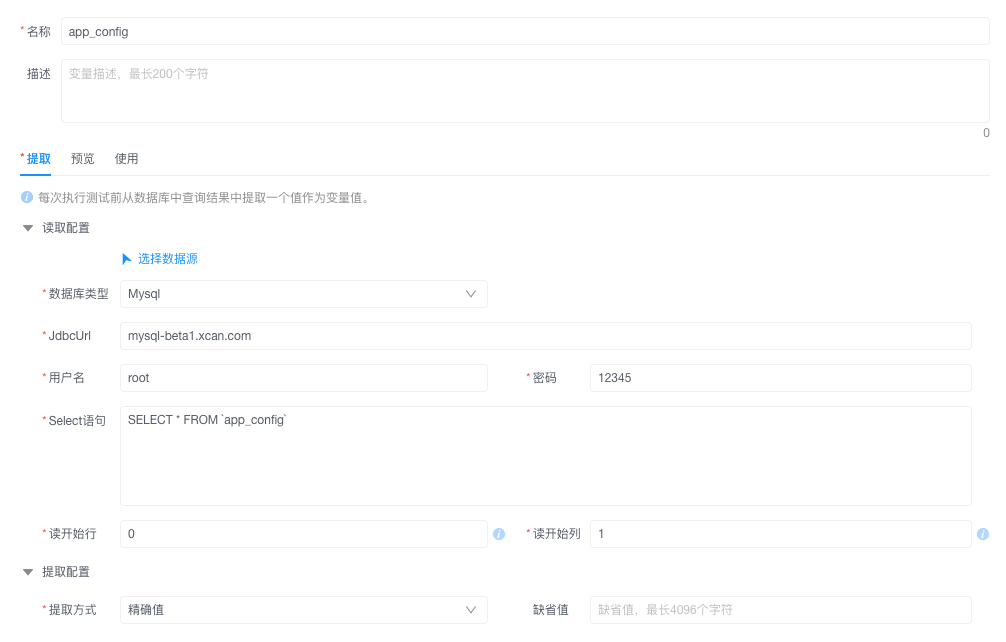

4. Add JDBC Extraction Variable

Description: Generate variables from database queries
Steps:

1. Click Add Static Variable▼ and select "JDBC Extraction Variable"
2. Configure database connection:
   • Data source (pre-configured)
   • SQL query (SELECT fields)
   • Value rule (first row/column or row/column index)

     ❗ Encrypt sensitive fields

II. Variable Maintenance

1. Batch Import Variables

Description: Configure variables via YAML files
Steps:

1. In Variables, click "Import"
2. Upload YAML file
3. System automatically:
   • Validates format
   • Executes overwrite/skip policies
     ⚠️ File must comply with Variable Field Specifications

2. Clone Variable

Description: Quickly create similar variables
Steps:

1. In Variable List, click "Clone"
2. System automatically:
   • Creates a copy (appends "-Copy.xxx" to name)
   • Preserves all configurations
     Requires manual adjustment of key parameters

3. Edit Variable

Description: Modify existing configurations
Steps:

1. In Variable List, click "Edit"
2. Editable fields:
   • Name/description
   • Value or extraction rules
   • Password type toggle
     Active variable changes require republishing

4. Batch Delete

Description: Clean up obsolete variables
Steps:

1. Select target variables
2. Click "Batch Delete"
3. Confirm operation
   ❗ Variables referenced by APIs must be unlinked first

III. Variable Integration

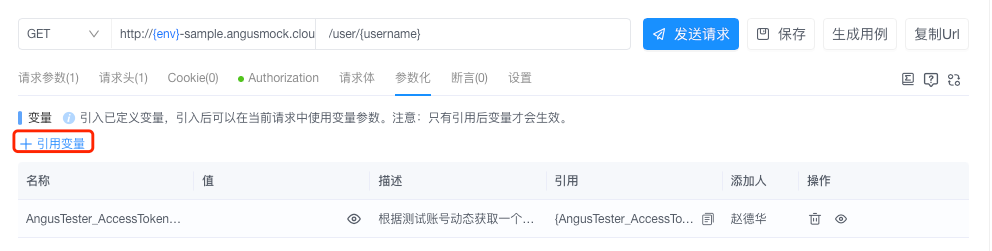

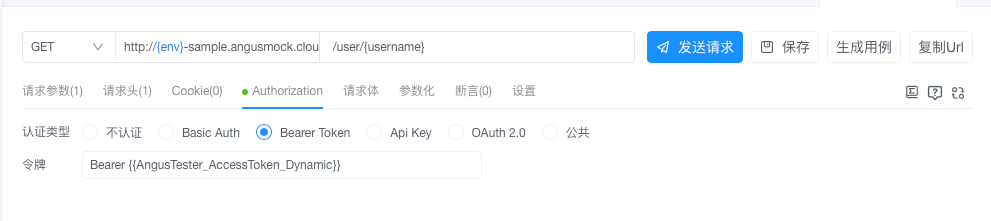

1. API Parameterization

Description: Dynamically invoke variables in API requests
Steps:

1. In API → Service Management, open target API
2. Click "Reference Variable" in Parameterization tab

3. Enter {variable_name} as parameter value

   ⚠️ Unlinked variables show red warnings

2. Scenario Parameterization

Description: Batch variable usage in test scenarios
Steps:

1. Open target scenario in Scenario Management
2. Add references in Execution Config → Variables
3. Enter {variable_name} in step parameters
   ❗ Cross-API variables must share consistent naming

IV. Data Export

1. Export Single Variable

Description: Backup or share configurations
Steps:

1. In Variable Details, click "Export"
2. Select format:
   • YAML (complete config)
   • JSON (API integration format)

2. Export All Variables

Description: Full backup of variable system
Steps:

1. In Variable Management, click "Export"
2. Auto-download ZIP archive containing:
   • All variable YAML files
   • Import documentation

Variable Field Specifications

Parameter	Field Name	Type	Required	Length	Description
ID	id	bigint	Cond.	/	Unique identifier; Auto-generated; Mandatory for modifications
Project ID	projectId	long	Yes	/	Parent project identifier
Variable Name	name	string	Yes	≤100	Unique variable name
Description	description	string	No	≤800	Functional description
Variable Value	value	string	Cond.	≤4096	Variable value; Required for non-extraction types
Password Type	passwordValue	boolean	Yes	/	Whether value is encrypted
Extraction Rules	extraction	object	No	/	Data extraction configuration
Extracted Status	extracted	boolean	Read-only	/	Whether data extraction is complete
Data Source	dataSource	enum	Read-only	/	Source Types: Static/Value Extract/File Extract/HTTP Extract/JDBC Extract
Tenant ID	tenantId	long	Read-only	/	Tenant identifier
Creator ID	createdBy	long	Read-only	/	Creator's user ID
Creator Name	createdByName	string	Read-only	/	Creator's name
Creation Time	createdDate	datetime	Read-only	/	Creation timestamp
Last Modifier ID	lastModifiedBy	long	Read-only	/	Last modifier's user ID
Last Modifier Name	lastModifiedByName	string	Read-only	/	Last modifier's name
Last Modified Time	lastModifiedDate	datetime	Read-only	/	Last modification timestamp

Extraction Configuration (extraction)

Refer to testing specifications: Parameterization → Extraction Configuration

Data Source (dataSource)

Enum Value	Description
STATIC_VALUE	Static Value
EXTRACT_VALUE	Value Extraction
EXTRACT_FILE	File Extraction
EXTRACT_HTTP	HTTP Extraction
EXTRACT_HTTP_SAMPLING	HTTP Sampling
EXTRACT_JDBC	JDBC Extraction
