Mock Interface Management

The AngusTester Mock Interface Management module supports flexible configuration of multiple response modes, enabling interface behavior simulation and request proxying.

I. Basic Interface Operations

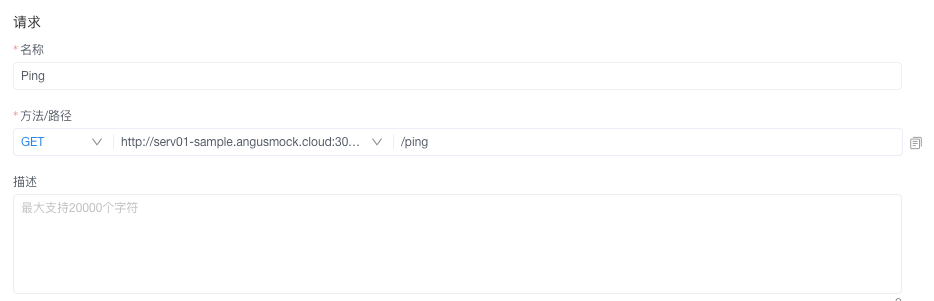

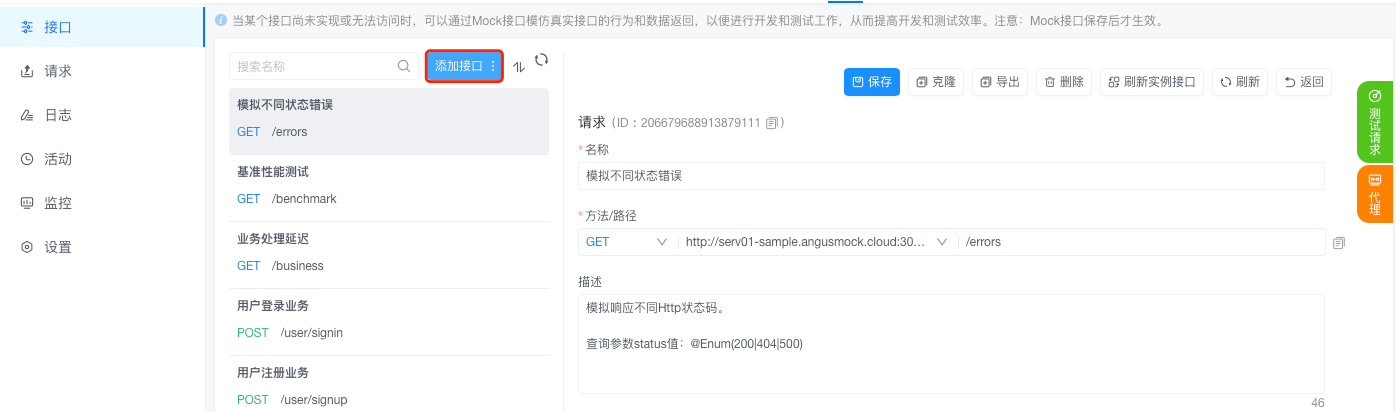

1. Create Mock Interface

Description: Define new mock interface specifications
Steps:

1. Mock Service → Interface Click "Add Interface"

2. Fill in basic information:
   • Path (e.g., /api/login)
   • Method (GET/POST, etc.)
   • Description (functional explanation)

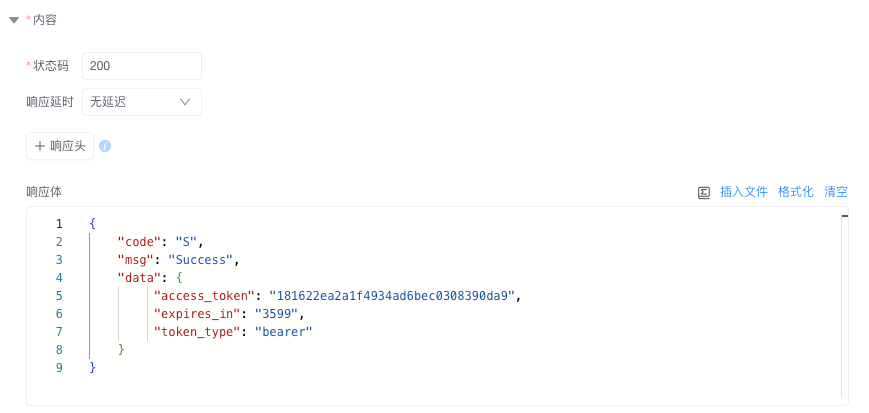

3. Configure response content:
   • Status code (200/404, etc.)
   • Response body (JSON/XML/TEXT)
   • Response headers (Content-Type, etc.)

     ⚠️ Path + Method must be globally unique

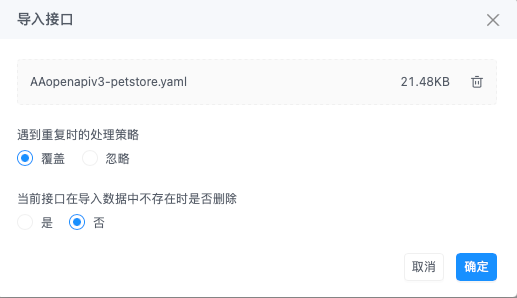

2. Bulk Import Interfaces

Description: Create interfaces in bulk via script files
Steps:

1. Add Interface▼ Select "Import Interface"

2. Upload file (JSON/YAML)
3. Set conflict resolution policy:
   • Overwrite (update existing interfaces with the same name)
   • Skip (retain original interfaces)


3. Clone and Export

Description: Reuse or back up interface configurations
Steps:

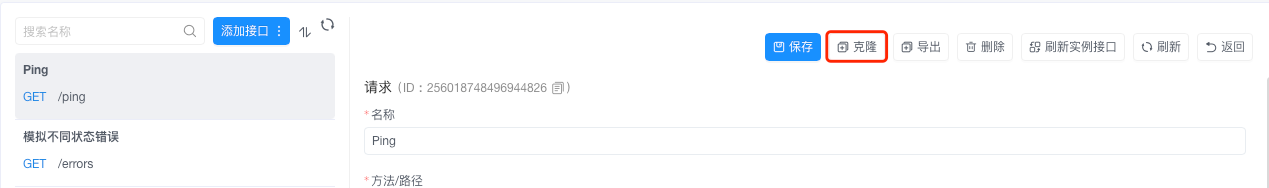

• Clone Interface:
  1. Click "Clone" on the interface row
  2. Automatically create a copy (modify path to avoid conflicts)

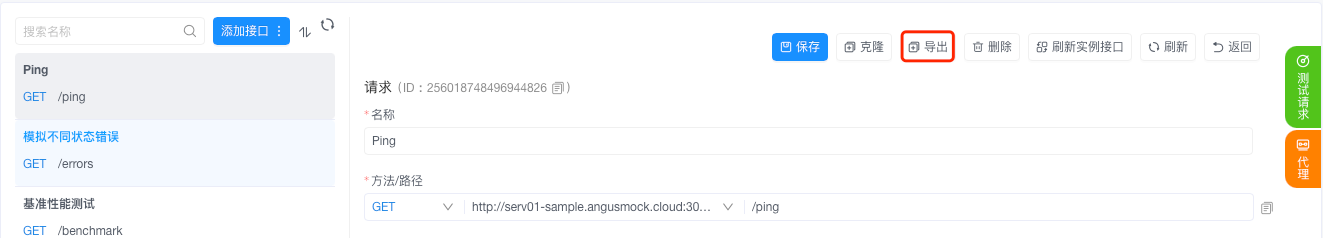

• Export Interface:
  1. Click "Export" button
  2. Download JSON format script


II. Interface Debugging and Testing

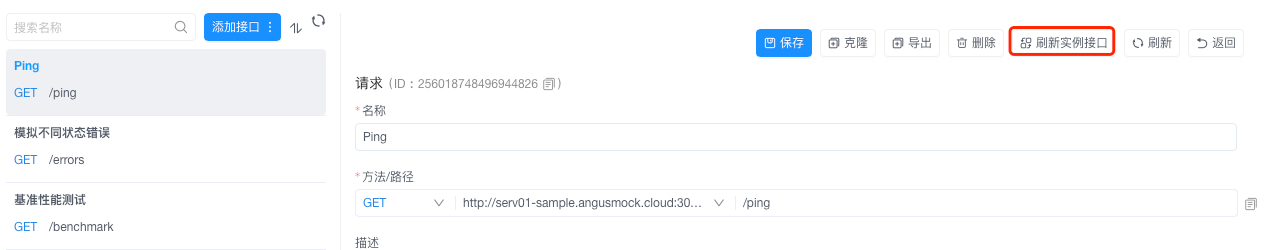

1. Instance Configuration Sync

Description: Force update running interface configurations
Steps:

1. Interface List Click "Refresh Instance Interfaces"

2. System automatically:
   • Reloads latest configurations
   • Maintains existing connections
     Takes ~3 seconds

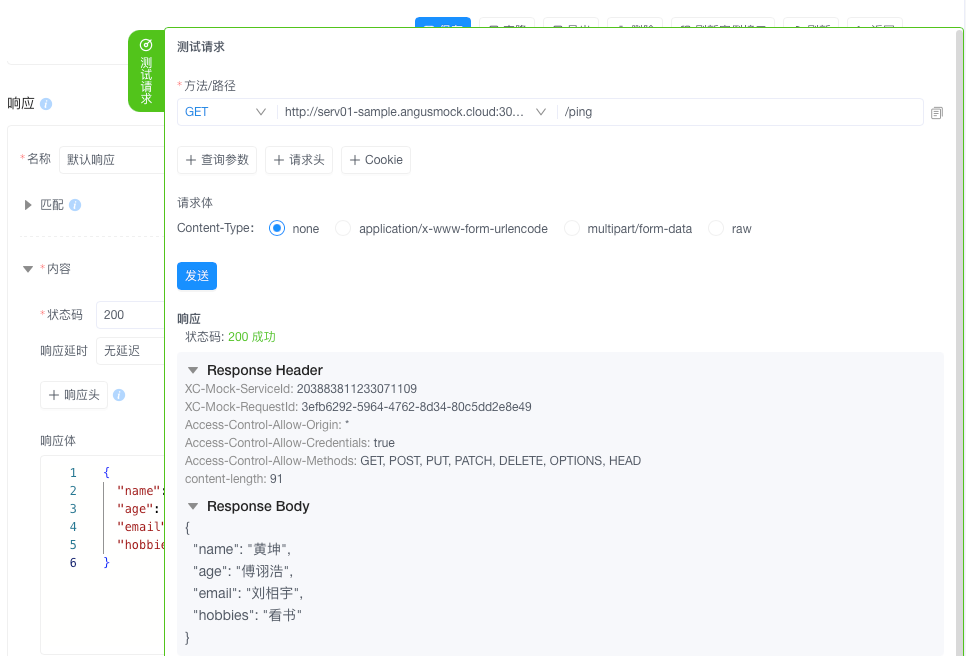

2. Request Testing and Verification

Description: Real-time verification of interface response accuracy
Steps:

1. Right Side Click "Test Request"
2. Send request and view response:
   • Status code (green/red indicators)
   • Response time (ms)
   • Response body (formatted display)

     ❗ Response header with XC-Mock-Error indicates configuration error

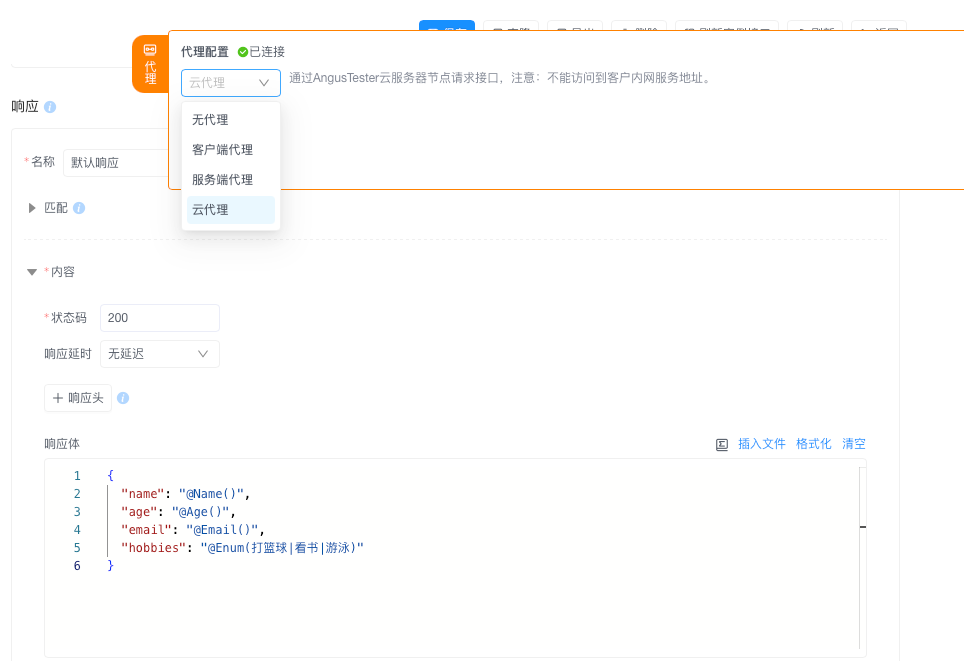

3. Request Proxy Configuration

Description: Resolve cross-origin restrictions
Steps:

1. Test Panel Click "Proxy" icon
2. Select preset proxy node

   ⚠️ Requires proxy setup in System Configuration

III. Response Configuration Management

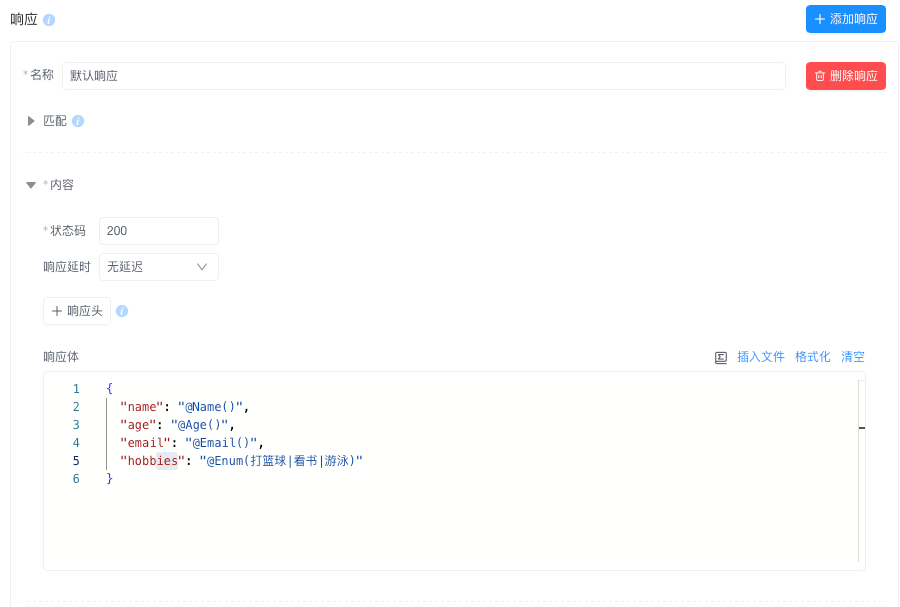

1. Random Content Response

Description: Dynamically generate mock data
Steps:

1. Response Configuration Enter mock function:

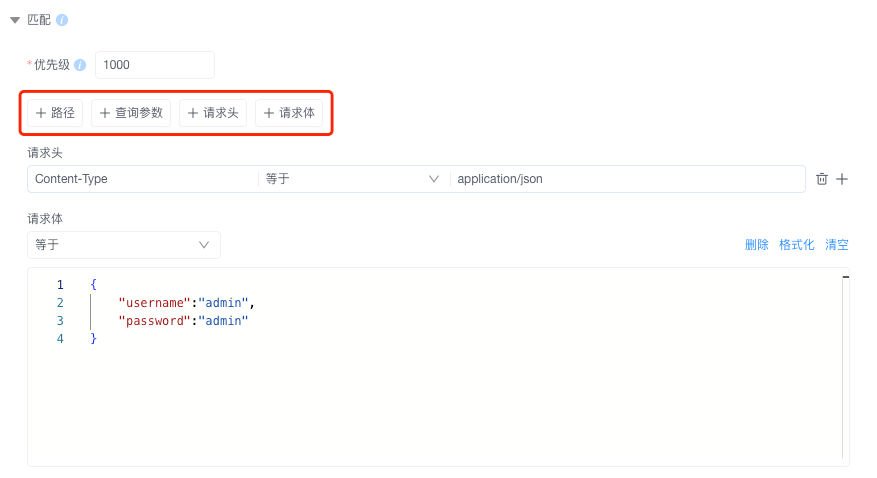

2. Conditional Matching Response

Description: Return different responses based on request parameters
Steps:

1. Add multiple responses
2. Configure matching rules:
   • Priority (lower numbers = higher priority)
   • Conditions (Header/Query/Body)

3. Set corresponding response content

   ⚠️ Returns default response if no match

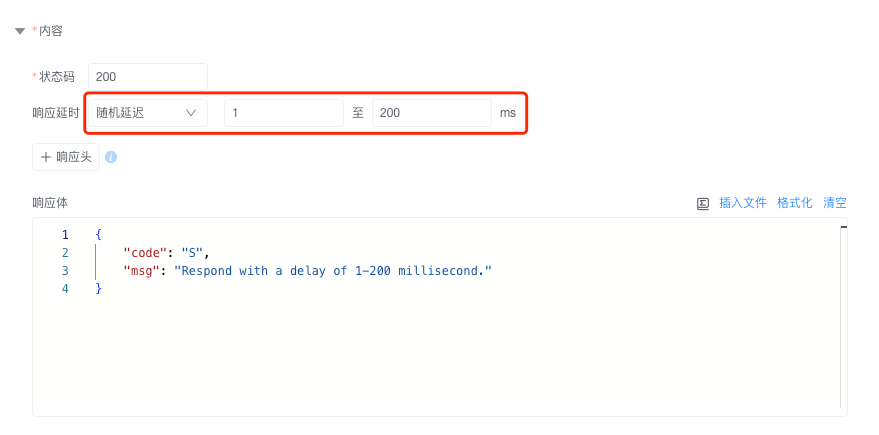

3. Delayed Response Configuration

Description: Simulate network latency scenarios
Steps:

1. Response Configuration Set delay parameters:
   • Fixed delay (milliseconds)
   • Random range (10-200ms)

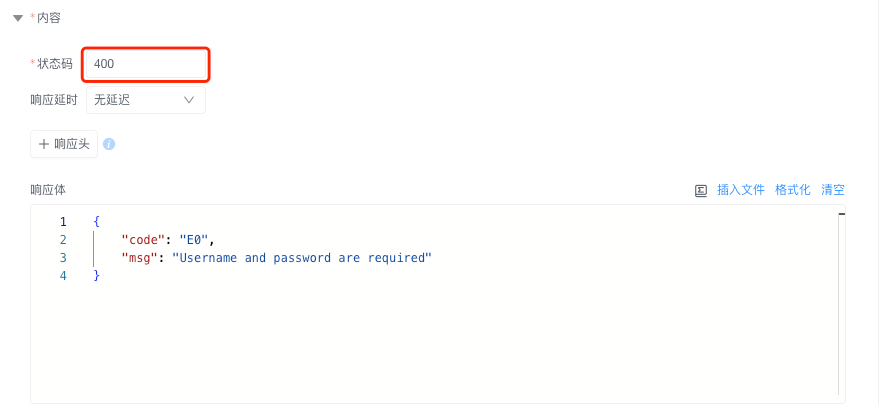

4. Error Status Code Response

Description: Simulate server errors
Steps:

1. Response Configuration Set status code:
   • 4xx (client errors)
   • 5xx (server errors)

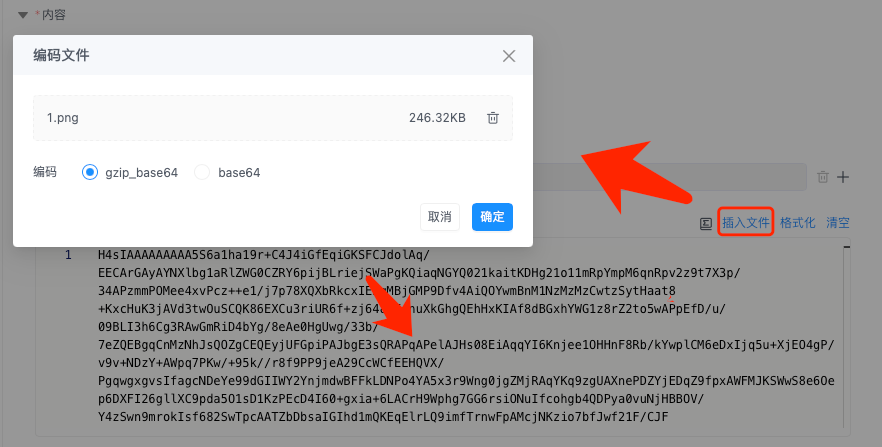

5. File Download Response

Description: Return binary file content
Steps:

1. Response Body Click "Insert File"
2. Select local file (auto-converted to Base64)

   ⚠️ File size ≤10MB

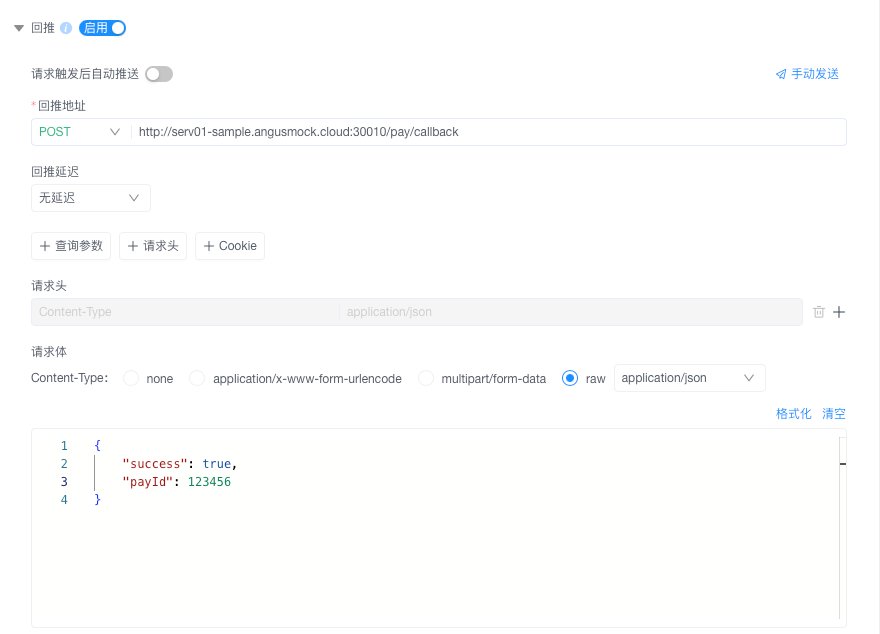

6. Request Callback Function

Description: Asynchronously forward requests to real interfaces
Steps:

1. Response Configuration Enable "Callback" toggle
2. Configure target URL and parameters


IV. Maintenance Operations

1. Response Management

Description: Manage multiple interface response configurations
Steps:

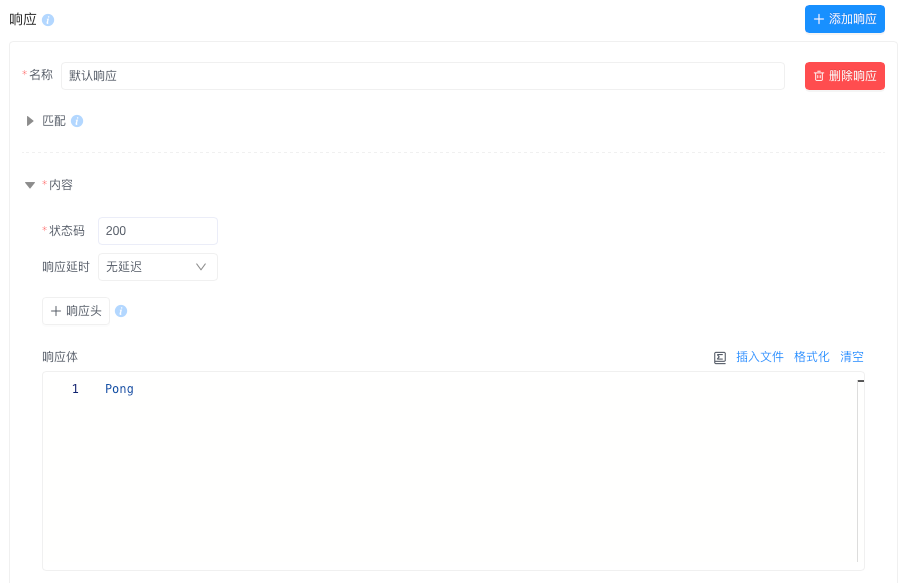

• Add Response: Click "Add Response"

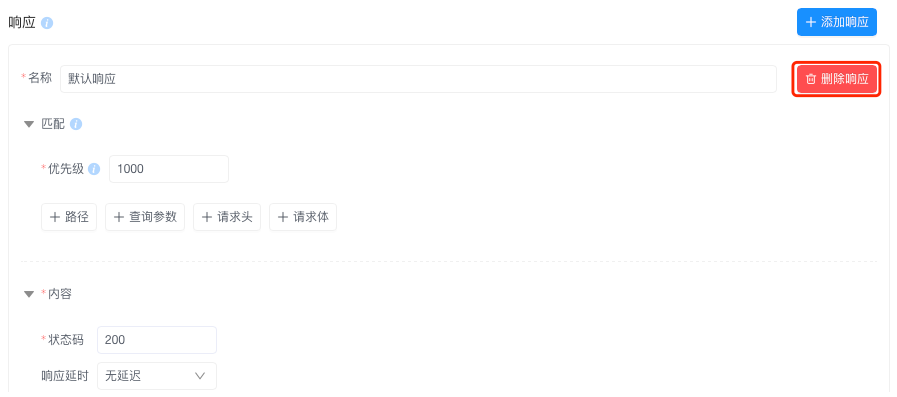

• Delete Response:
  1. Click "Delete" on response card
  2. Confirm removal

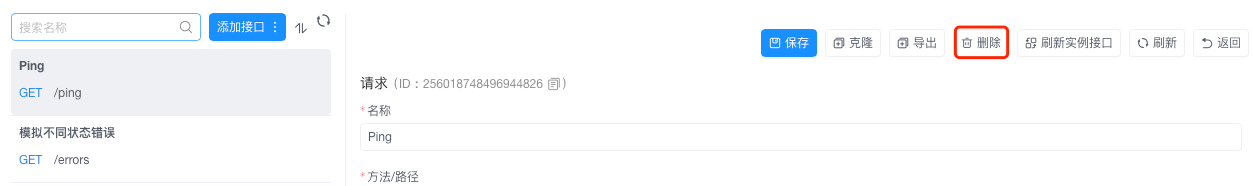

2. Interface Deletion

Description: Clean up invalid interfaces
Steps:

1. Interface List Select target interface
2. Click "Delete" icon
3. Confirm operation

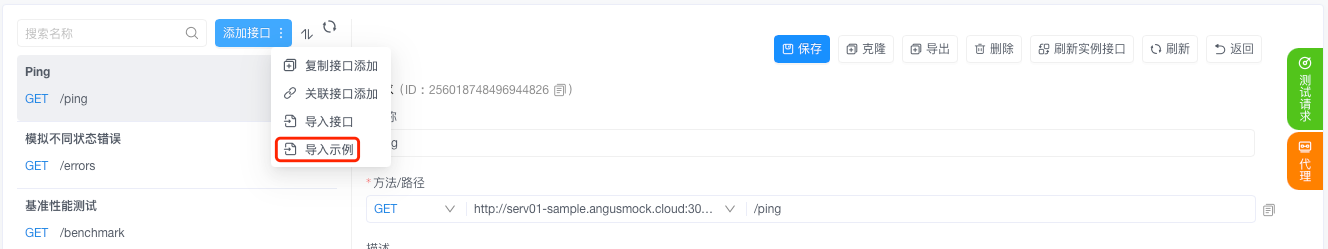

3. Example Library Import

Description: Quickly obtain standard examples
Steps:

1. Add Interface▼ Select "Import Example"
2. System automatically creates built-in interface examples

MockApi Field Information

Parameter	Field Name	Type	Required	Length Limit	Description
ID	id	bigint	Conditional	/	Unique identifier; Required for modifications
Mock Service ID	mockServiceId	long	Yes	/	Associated mock service unique ID
Interface Name	summary	string	Yes	≤400	Interface function summary
Detailed Description	description	string	No	≤20000	Detailed interface description
HTTP Method	method	enum	Yes	/	HTTP Method, e.g., GET
Interface Endpoint	endpoint	string	Yes	≤800	Interface access path
Project ID	projectId	long	Read-only	/	Associated project ID
Interface Source	source	enum	Read-only	/	Source, e.g., manually created
Import Source	importSource	enum	Read-only	/	Import Source, e.g., OpenAPI
Associated Project ID	assocProjectId	long	Read-only	/	Associated project ID
Associated Project Name	assocProjectName	string	Read-only	/	Associated project name
Associated Interface ID	assocApisId	long	Read-only	/	Associated interface ID
Associated Interface Name	assocApisName	string	Read-only	/	Associated interface name
Mock Service Name	mockServiceName	string	Read-only	/	Associated mock service name
Mock Service Domain URL	mockServiceDomainUrl	string	Read-only	/	Mock service domain URL
Mock Service Host URL	mockServiceHostUrl	string	Read-only	/	Mock service host URL
Request Count	requestNum	long	Read-only	/	Total interface request count
Callback Request Count	pushbackNum	long	Read-only	/	Callback request count
Simulated Error Count	simulateErrorNum	long	Read-only	/	Simulated error response count
Success Count	successNum	long	Read-only	/	Successful request count
Exception Count	exceptionNum	long	Read-only	/	Exception request count
Inconsistent Operation Flag	inconsistentOperation	boolean	Read-only	/	Whether interface operations are inconsistent
Associated Interface Deletion Status	assocApisDeleted	boolean	Read-only	/	Whether associated interface is deleted
Actual Interface Method	apisMethod	enum	Read-only	/	Actual HTTP method of associated interface
Actual Interface Endpoint	apisEndpoint	string	Read-only	/	Actual access path of associated interface
Response List	responses	list	Read-only	/	Mock response configuration list
Tenant ID	tenantId	long	Read-only	/	Tenant ID
Creator ID	createdBy	long	Read-only	/	Interface creator ID
Creator Name	createdByName	string	Read-only	/	Creator name
Creation Time	createdDate	datetime	Read-only	/	Interface creation time
Last Modified By ID	lastModifiedBy	long	Read-only	/	Last modifier ID
Last Modified By Name	lastModifiedByName	string	Read-only	/	Last modifier name
Last Modified Time	lastModifiedDate	datetime	Read-only	/	Last modification time

Response List Fields (responses)

Parameter	Field Name	Type	Description
Response Name	name	string	Response configuration name
Request Matching Conditions	match	object	Request matching rule configuration
Response Content	content	object	Mock response content configuration
Callback Configuration	pushback	object	Request callback configuration
Match Exception Response Flag	matchExceptionResponse	boolean	Whether to match exception responses

Interface Source (source)

Enum Value	Description
CREATED	Manually created by user
ANGUS_IMPORT	Imported via AngusTester file
COPY_APIS	Copy of existing interface
ASSOC_APIS	Mock interface from associated interface

Import Source (importSource)

Enum Value	Description
OPENAPI	Imported from OpenAPI spec file
POSTMAN	Imported from Postman collection file
ANGUS	Imported from AngusTester spec file

HTTP Method (method)

Enum Value	Description
GET	Retrieve specified resource
POST	Submit data to specified resource
PUT	Replace entire resource content
DELETE	Delete specified resource
PATCH	Partially update resource
OPTIONS	Get server communication options
HEAD	Get resource header metadata
