How to Validate Performance Under Different Loads in a Single Execution with AngusTester

Pain Points of Traditional Tools

Testing performance for 5000 users requires 50 configuration changes, 50 data recordings, and a cumulative 50 minutes of waiting time.

Limitations of Traditional Stress Testing Tools

Comparison Dimension	JMeter/AB/wrk Tools	AngusTester
Testing Strategy	Manual thread increment	Fully automated gradient load increase
Configuration Complexity	Repeated configurations	Single configuration, permanent effect
Time Cost	High (multiple rounds × execution time)	Low (single comprehensive execution)
Data Integration	Manual report consolidation	Automated comparative report generation
Monitoring Granularity	Segmented data collection	Full-cycle continuous monitoring

One-Click Full Gradient Load Analysis

Step 1: Create Intelligent Test Script

specification: angus/1.0.0
info:
  name: Full Gradient Load Analysis Example
  description: Automatically validate system performance under different loads
type: TEST_PERFORMANCE
plugin: Http
configuration:
  duration: 50min              # Total test duration
  thread:
    threads: 5000               # Target maximum concurrency
    rampUpInterval: 1min        # Load gradient interval
    rampUpThreads: 100          # New concurrent users per gradient
task:
  pipelines:
    - target: HTTP
      request:
        method: GET
        url: http://serv01-sample.angusmock.cloud:30010/business?delay=10

• Core Parameter Explanation

Parameter	Purpose	Configuration Tips
threads	Maximum concurrency	Set to 120% of expected peak
rampUpInterval	Load increase interval	Set based on business fluctuation characteristics
rampUpThreads	New concurrent users per increase	Recommended 5-10% of system capacity
delay=10	Interface simulation delay	Set to typical business response time

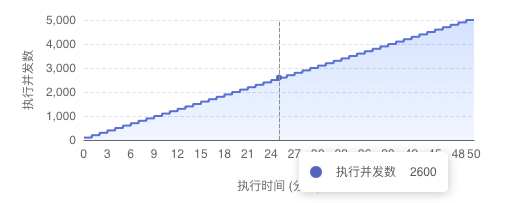

• Working Principle Diagram

Technical Advantage

Automatic Load Increase Mechanism: The system automatically adds 100 concurrent users per minute, achieving full gradient coverage from 0→5000 concurrency within 50 minutes.

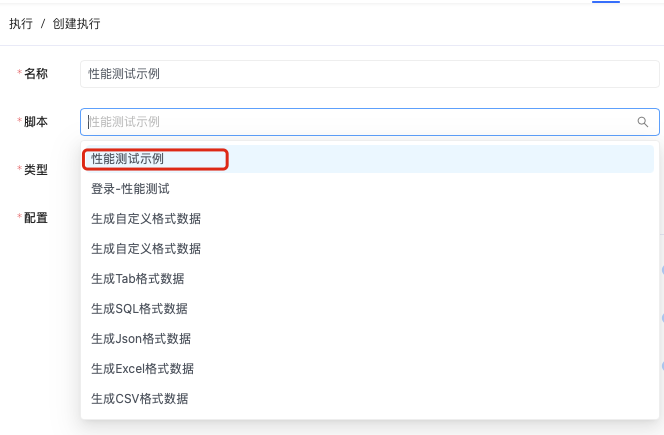

Step 2: Configure Execution Task

1. Navigate to Execution → Add Execution.
2. Select the created intelligent script, confirm parameters, and save.

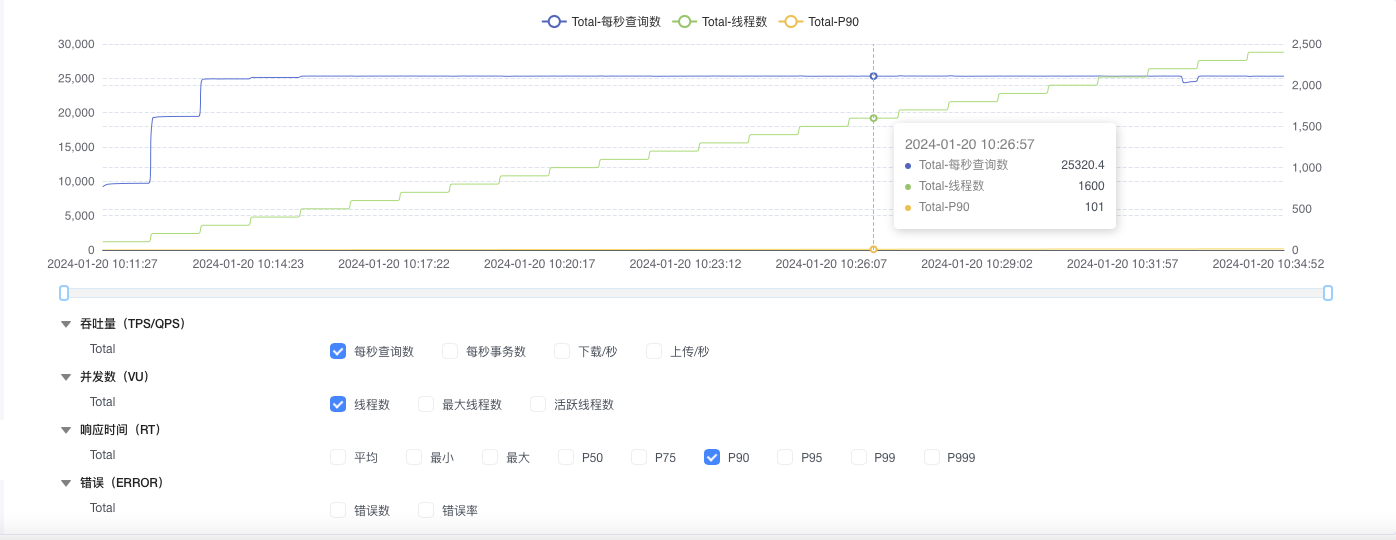

Step 3: Multi-dimensional Performance Analysis

Access the "Overlay Analysis" panel in execution details to:

• Correlate key metrics observation
  1. Concurrency Change Curve: Real-time thread growth tracking
  2. TPS Fluctuation Trend: System throughput change monitoring
  3. P90 Response Time: High-assurance performance level monitoring
• Identify performance inflection points
  • Discover performance bottlenecks
  • Locate resource saturation thresholds
  • Identify error rate mutation intervals

Core Advantage Analysis

Comparative Testing Solution Value

Evaluation Dimension	Traditional Method	AngusTester Solution
Time Cost	50 minutes × configuration count	Single 50-minute execution
Human Resources	Full-time monitoring	Automatic execution
Data Continuity	Segmented independent	Continuous correlation
Analysis Depth	Single-point data	Trend comparison

Technical Implementation Value

1. Automatic Load Increase Engine:
   Precise control of load growth rate, simulating real business fluctuations

2. Intelligent Sampling Mechanism:
   Millisecond-level metric collection, capturing instantaneous performance fluctuations

3. Correlation Analysis Model:
   Dynamic correlation analysis of TPS, response time, and concurrency

4. Automatic Inflection Point Identification:
   Algorithm-based automatic marking of performance inflection points

Typical Application Scenarios

System Scaling Planning

• Precisely identify system capacity limits
• Determine optimal performance waterline
• Develop scientific scaling strategies

Version Performance Validation

• Pre/post-release performance comparison
• Verify performance optimization effectiveness
• Prevent performance regression

Bottleneck Identification

• Rapid identification of performance inflection points
• Resource utilization correlation analysis
• Precise bottleneck component localization
